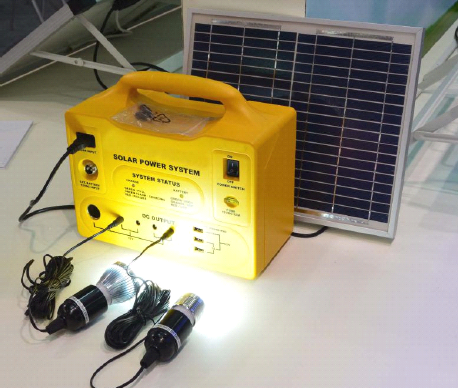

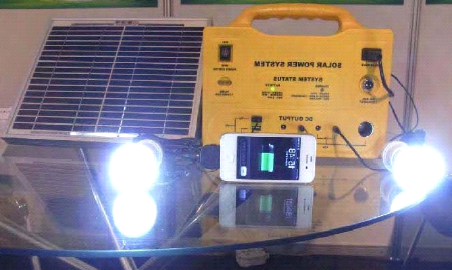

Portable Solar Home System
This Solar Power System combines charging, charging control, conserve power with portable design.Can replace power source from household power source as emergency power source, back-up power source in supports of rescue operation, support the areas of insufficient local power, provide power source for emergency, traveling, outdoor recreation, camping, etc.……
Solar Power System includes solar charge, storage, discharge control and load use. It has low power consumption high efficiency, system security protection, multi-powersource output, load end Plug and Play.

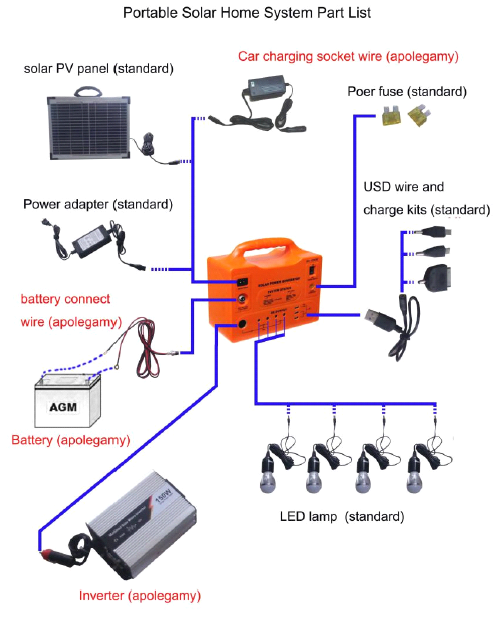

On basis of simple diversity of system design, system divides into four parts:solar module, charge and discharge management module, battery and optional load.
Features
-Portable Design.
-Multiple charging inputs from solar, AC/DC adapter, Vehicle.
-Low consumption, high efficiency and auto management.
-Long stand-by time.
-Charge status and battery level indicator.
-Initiative Safety Protection circuitry
-Plug and play operation.
-Easy to install and maintenance.
-Solar panel and battery can be expansion.
|

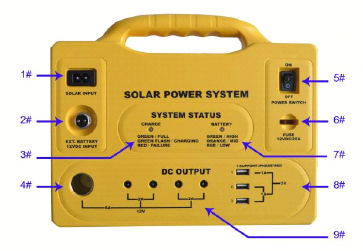

Outlook Introduction
1#. Charging input.
2#. External battery input.
3#. Charging status.
4#. Car charging socket.
5#. Power switch.
6#. Power fuse (20 Amps).
7#. Battery status.
8#. USB output.
9#. DC jack output.
|
 |
|

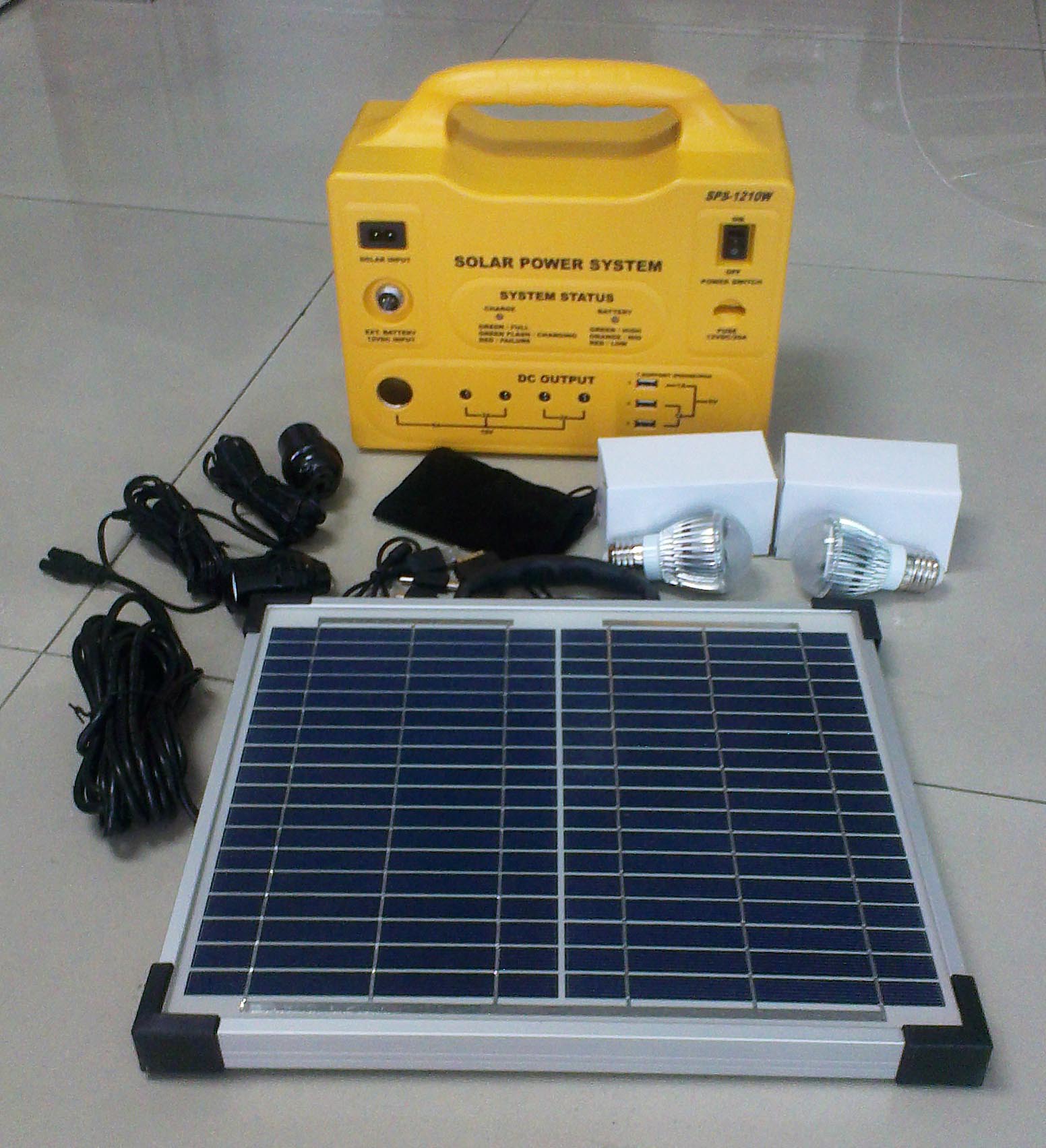

System configuration
-Main system battery：AMG 12.0V/7/12/20Ah.
-Solar panel：17.4VDC/10/20/40W
-Main system control：12.0VDC/10.0A.
-Main power switch：12.0VDC/10A.
-Main power fuse：12.0VDC/20A.
-Charging input1：16VDC~24VDC/100W(MAX) .
-External battery input x 1：AMG 12VDC/20Ah(MAX)
-Main system power charging/battery level status indicator.
-USB output x 3：5VDC.
-DC jack output x 4：12VDC.
-Car socket x 1：12VDC.
|
 |
