Split Solar Water Heating System
Millionsun specializes in OEM and ODM manufacturing of split solar water heating systems for distributors, solar brands, local manufacturers, EPC contractors, and installers worldwide.
Our systems are fully passed the Australian standards AS/NZS 2712:2007 and AS 3498-2009, which are amongst the world most rigorous. We are proud to offer a 5 year tank warranty on our complete range, giving you peace of mind and confidence in your Millionsun Solar system.
Key Features & Performance
Closed-Loop Forced Circulation
A pump circulates antifreeze in the sealed collector loop. Heat transfers to tank water via heat exchanger with no fluid mixing and freeze risk.
Flexible Placement

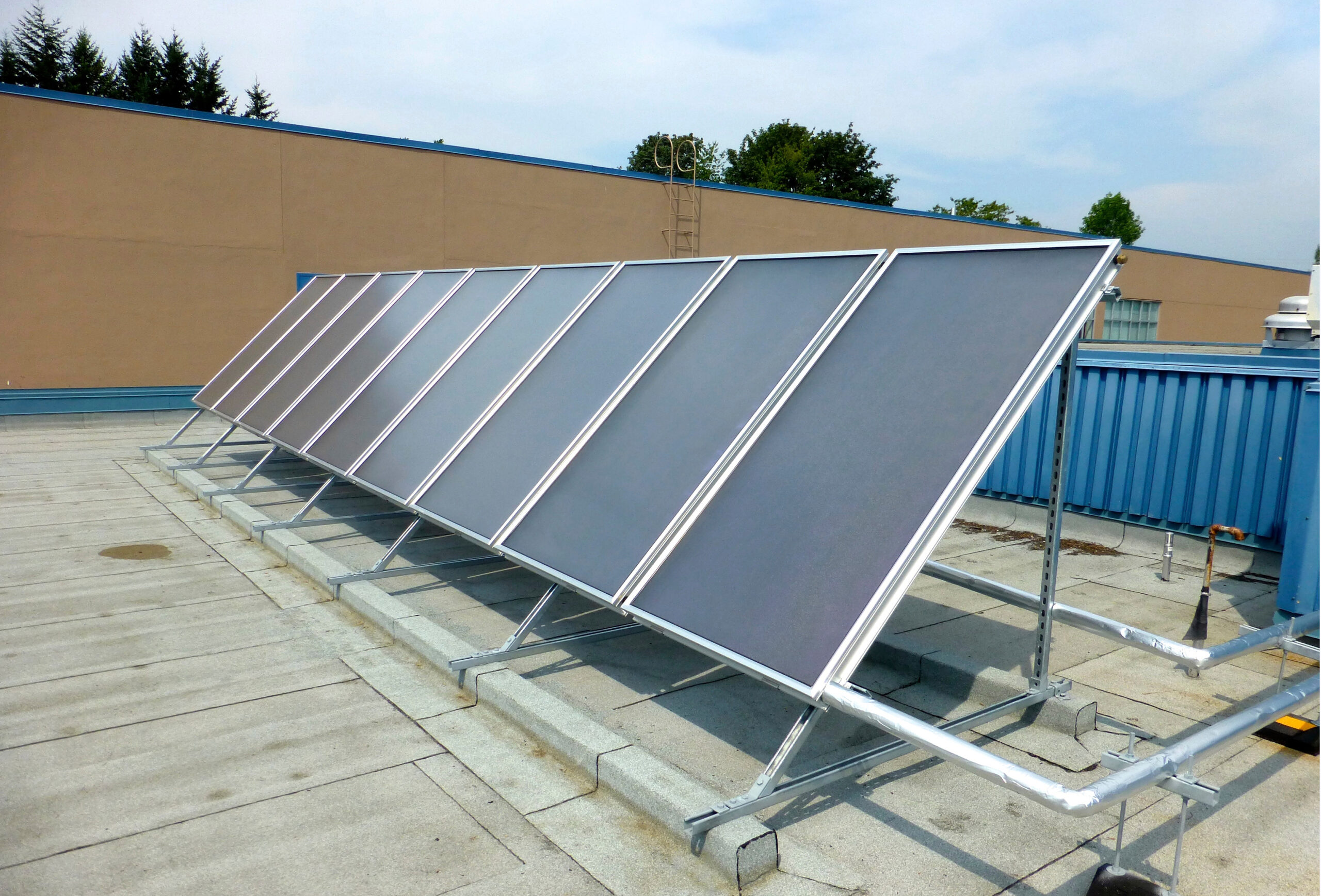

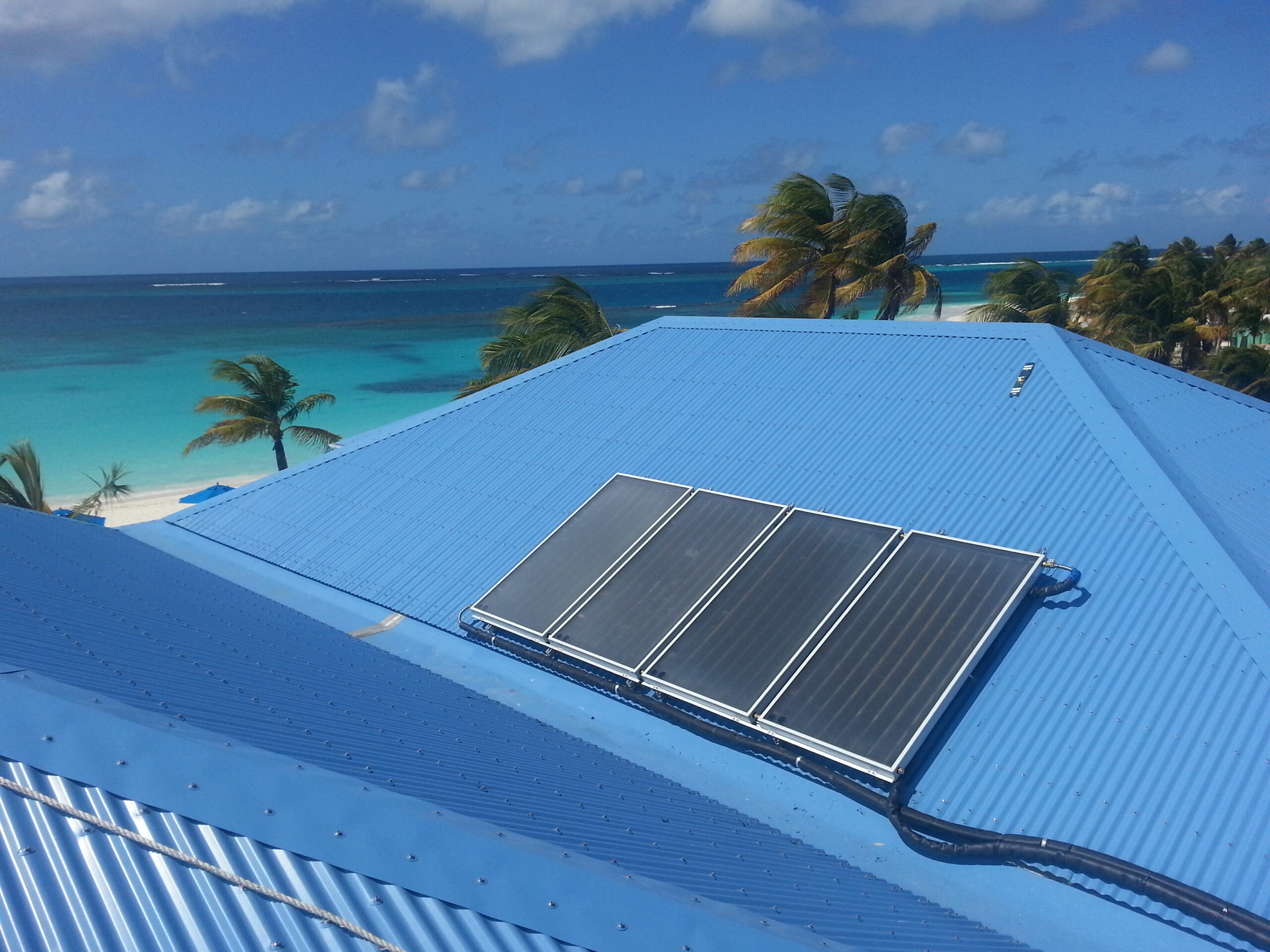

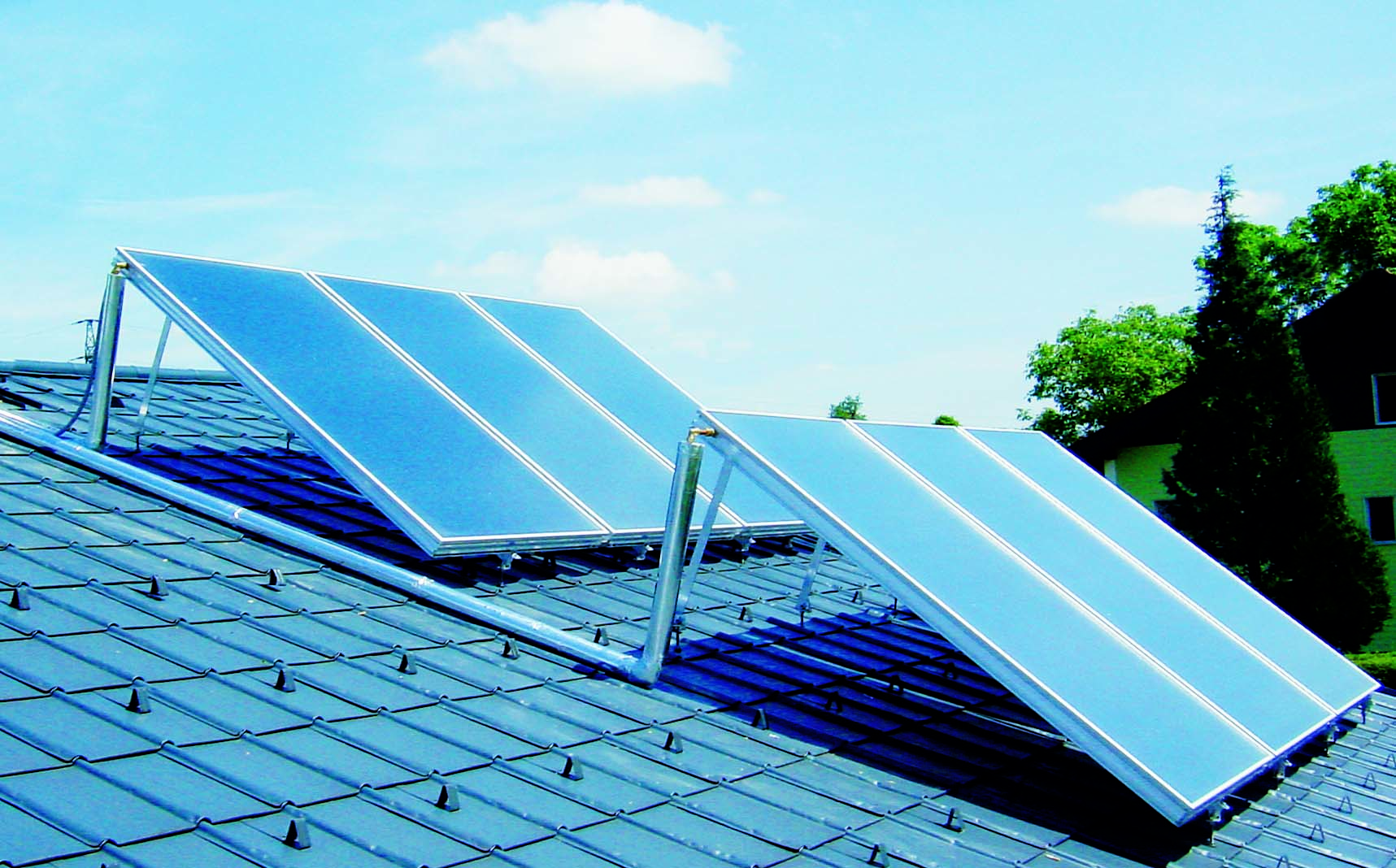

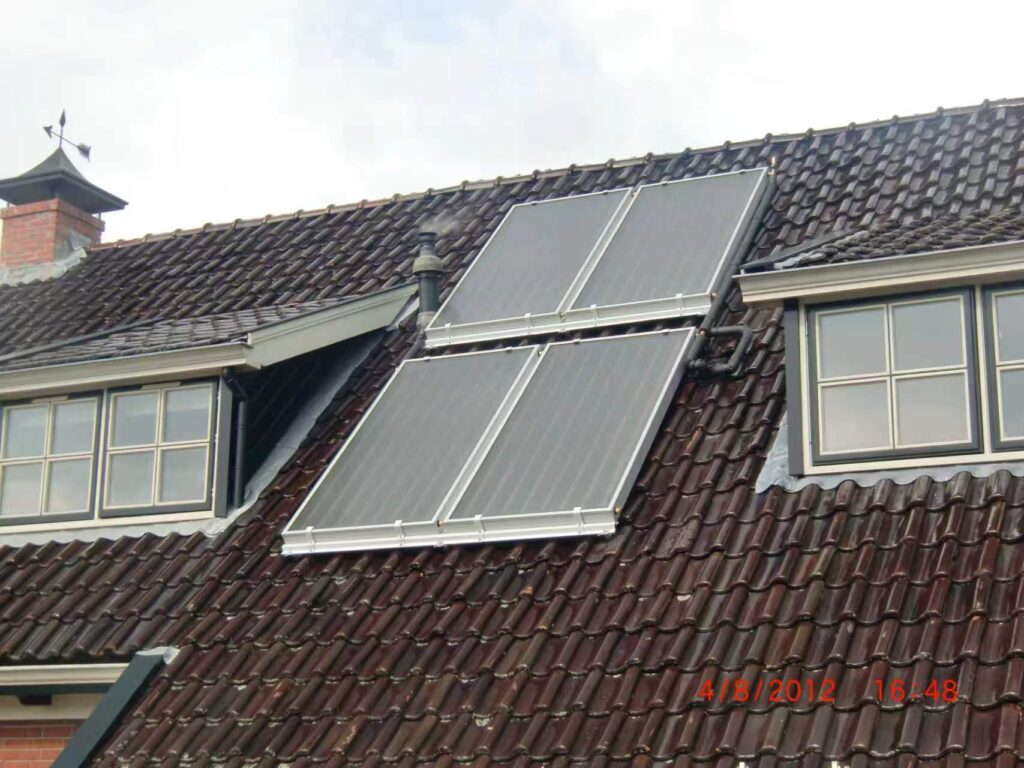

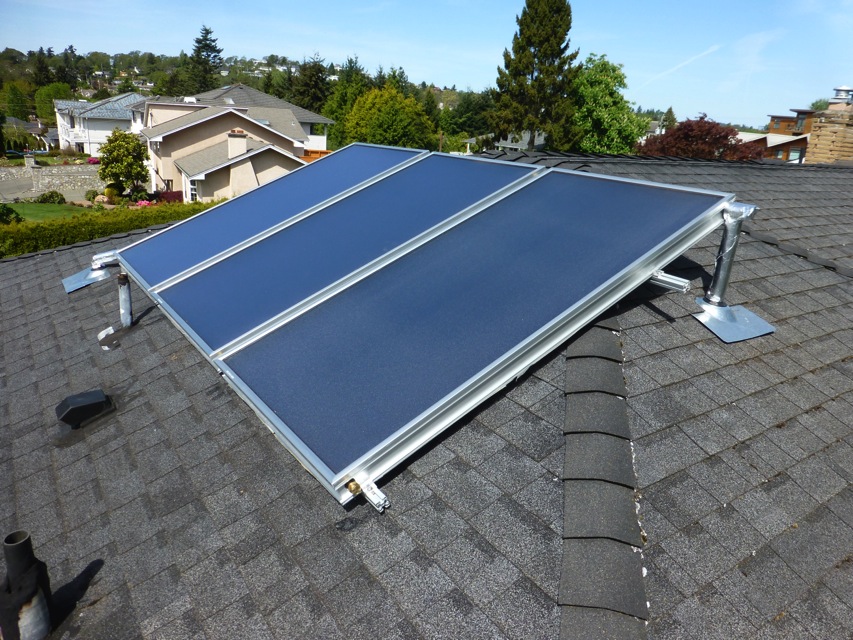

Collectors mount on roof, wall or ground; tank installs indoors, basement or ground level. Greater design flexibility than integrated systems.
High-Efficiency Collectors
Millionsun flat-plate collectors: black/blue selective coating (95% absorptivity), full-copper flow channels, low-iron tempered glass (≥92% transmittance).

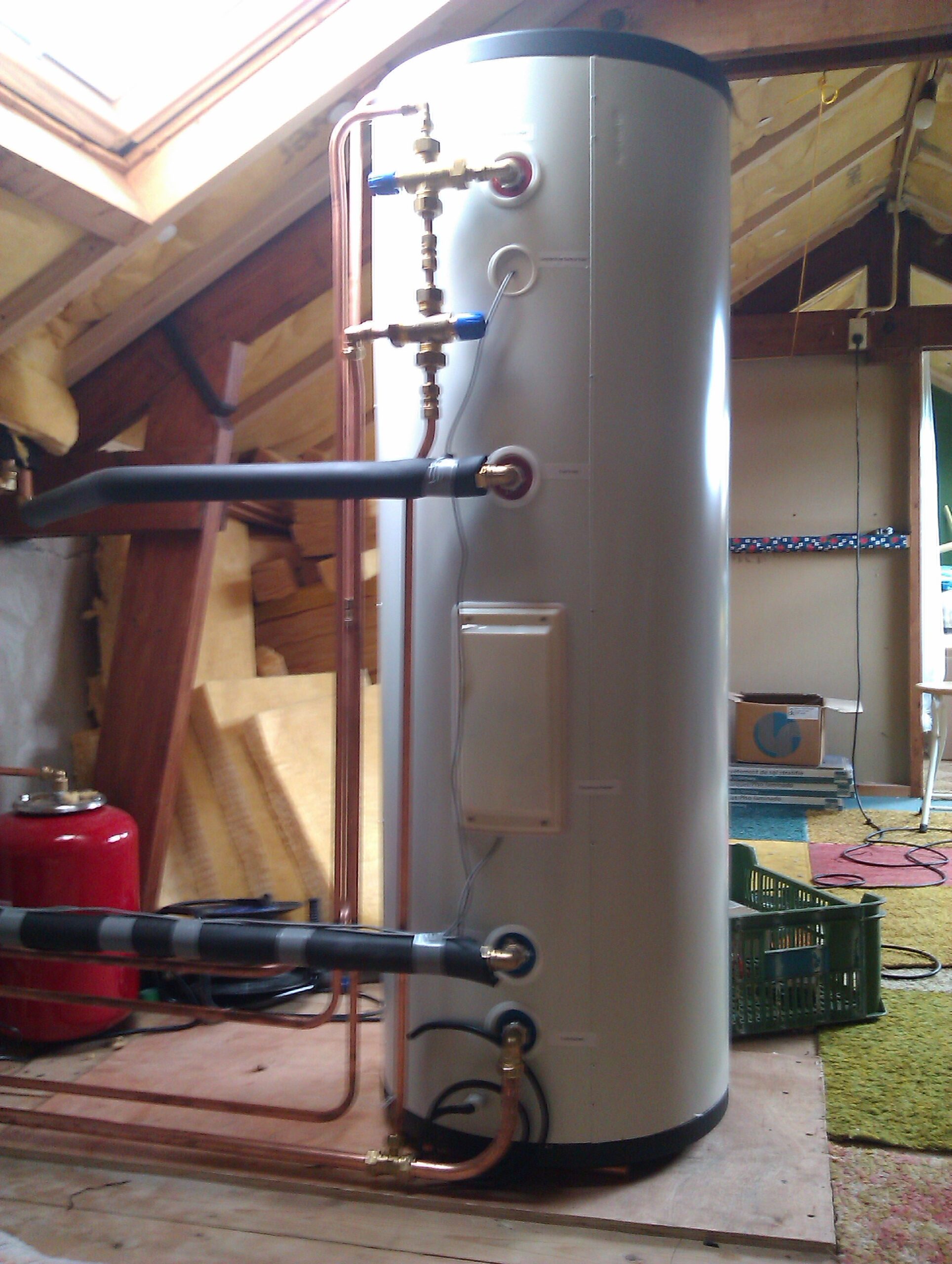

Durable Tank
Foodgrade SUS304 / SUS316L stainless steel liner. 50 mm polyurethane insulation retains water temperature for hours.
Smart Controller
Automatically operates the pump, monitors temperature differential, triggers backup heating and provides freeze protection.
Closed-Loop Freeze Protection
Sealed loop with foodgrade antifreeze, working down to -25°C. Backup valve activates even during power outages.
Split Solar Water Heating System Specifications
| Type | HS-100 | HS-150 | HS-200 | SE-300 | SE-400 |
|---|---|---|---|---|---|
| Collector Area | 1.5m² | 2.0m² | 2.5m² | 2 × 2.0m² | 3 × 2.0m² |
| Collector Quantity | 1 | 1 | 1 | 2 | 3 |
| Tank Volume | 100L | 150L | 200L | 300L | 400L |
| Support | Ramp Roof | ||||
| System Working Pressure | 7 bar | ||||
| Number of Persons | 2–3 | 3–4 | 4–5 | 5–7 | 7–9 |
| Main Components | |||||
| Tank | Tank type: Horizontal tank, volume from 150L to 400L. Inner material: SUS316L (1.5mm) or SUS304. Outer material: Painted steel or SUS304. Electric backup: Optional 1500W–3600W electric heating element. | ||||
| Collector | Size: 2000 × 1000 × 80mm (2.0m²) or 2000 × 1250 × 80mm (2.5m²) Cover material: 3.2mm low-iron patterned tempered glass. Absorber material: Black selective coating with aluminium sheet. Header tube: Φ22mm × 0.6mm. Riser tube: Φ10mm × 0.5mm. Insulation: Fiberglass wool. Backsheet: Aluminium plate. | ||||
| Bracket | Material: Aluminium alloy. Installation angle: 15°–60°. | ||||
| Accessories | T&P valve, air valve, copper fittings, circulation pipe and insulation. | ||||
What we offer?
OEM & ODM Manufacturing Support
Private Label Production
Custom Tank Capacity & Collector Configuration
Electric or Heat Pump Backup Options
Complete System or Component Supply
Technical Documentation & Engineering Support
Custom Project Solutions
Customized capacities up to 500L and multi-collector configurations are available for OEM customers and commercial projects. Tank, collector array, and backup system can be specified per project requirement.
Recommended Applications:
Single-family homes
Villas
Holiday houses
Small residential projects
Hotels and guesthouses
•mall commercial buildings
Business Value
Product Comparison — Why Split Solar Wins

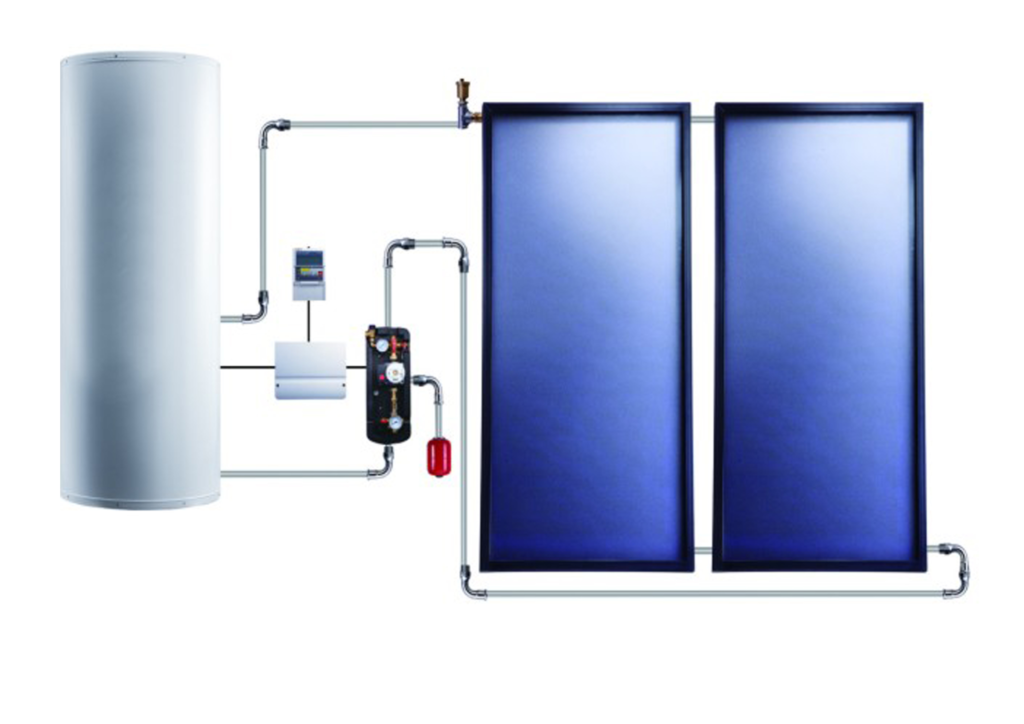

How the System Works
1
Collectors absorb sunlight and turn it into heat.
2
The controller checks the temperature gap between the collectors and the tank.
3
If the collectors are 5–8°C hotter, the pump starts. Antifreeze fluid flows through the sealed collector loop.
4
The hot fluid passes through a heat exchanger. Heat moves to the tank water. The two fluids never mix.
5
The cycle repeats all day. The tank water gets hotter and hotter.
6
If the sun is not enough, the electric element or heat pump kicks in to keep the water at 55–60°C.
Manufacturing & Supply Capabilities
OEM Manufacturing
Millionsun makes solar water heating products for partners worldwide.
Our Factory
- 8,000 m² Production Facility
- 80+ Employees
- 6 Automated Production Lines
- Dedicated tank production workshop
- Tank production since 2010
- Tank output: 4,000 units per month
Supply Options
- Complete systems
- CKD / SKD kits
- Components only
- Private label
- Custom builds
Technical Resources Center
Frequently Asked Questions
Do you offer OEM service?
What tank sizes do you offer?
How is a split system different from a compact one?
Does it work in cold climates?
How long does installation take?
