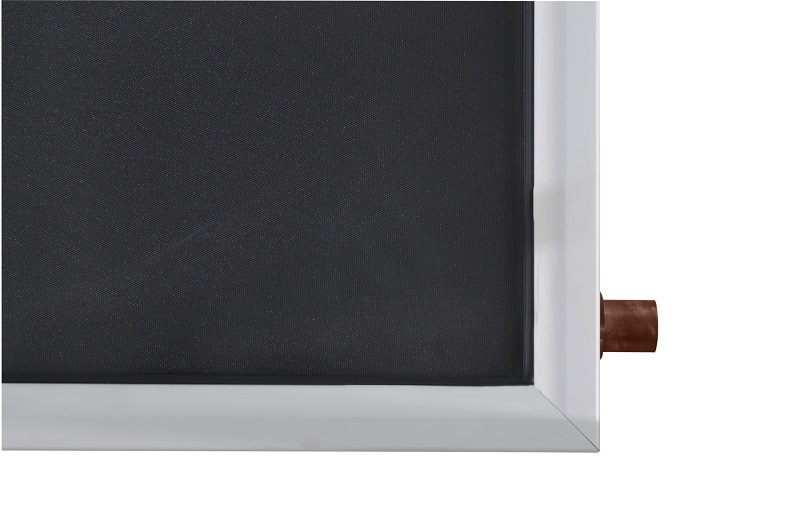

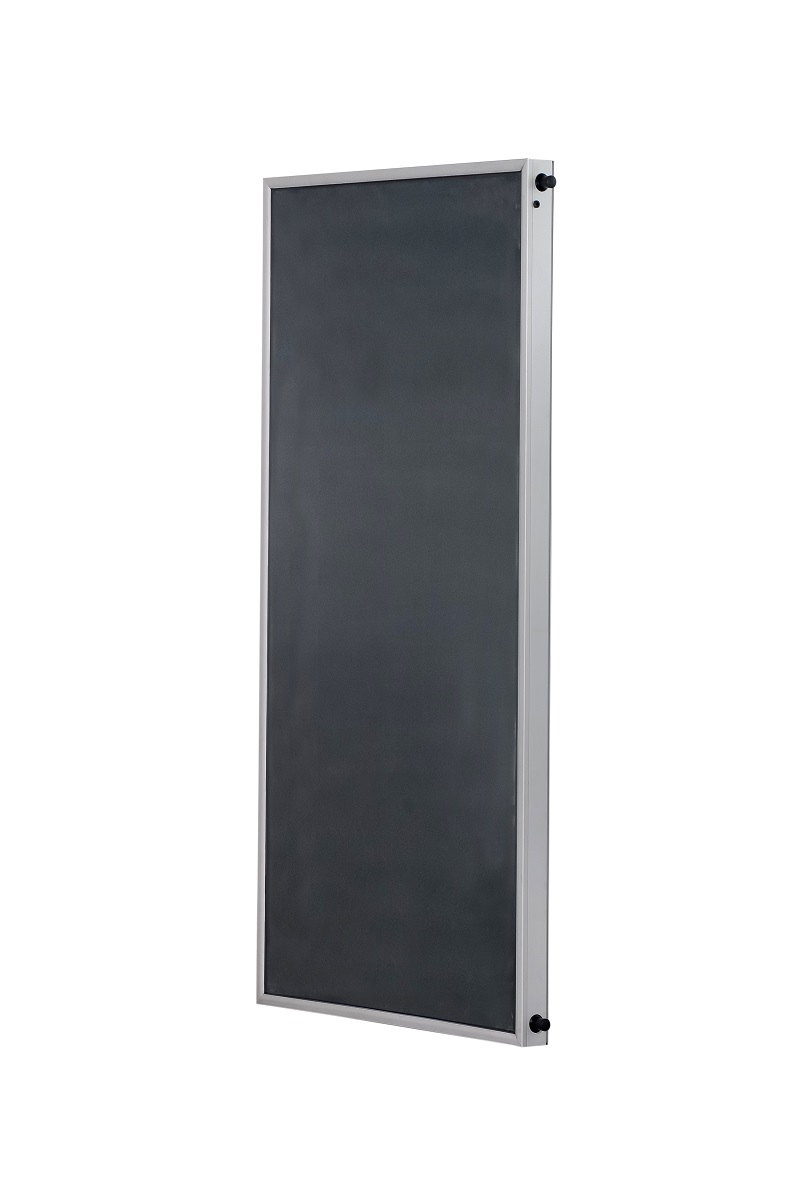

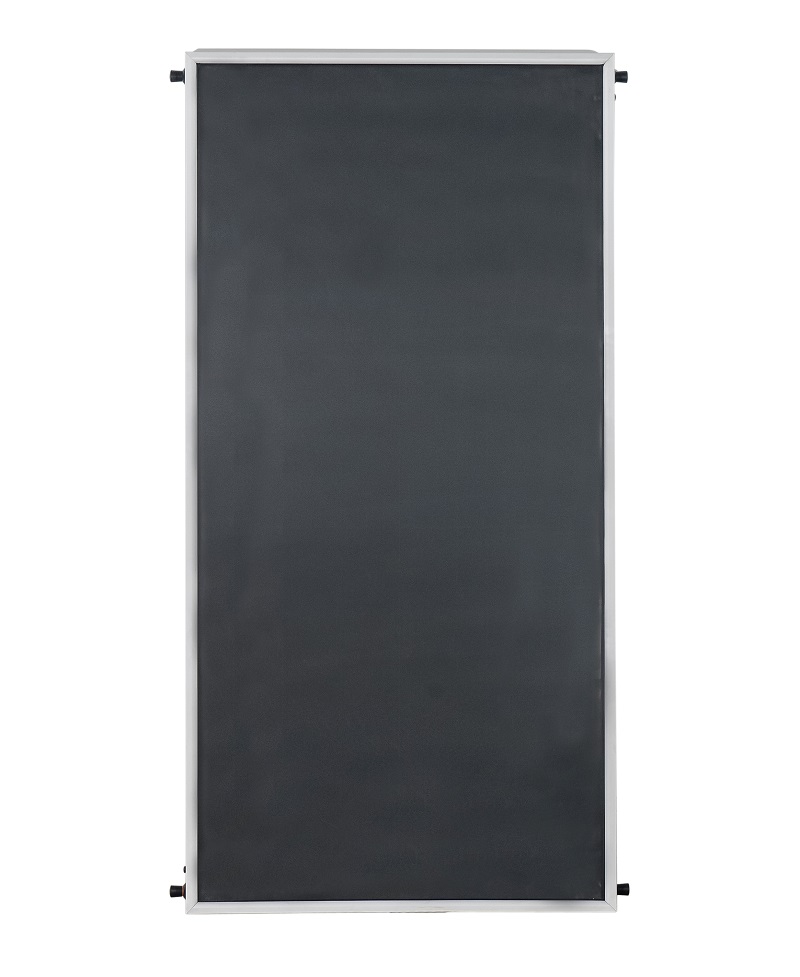

Black Flat Plate Solar Collector
Millionsun specializes in OEM and ODM manufacturing of black flat plate solar collectors for distributors, solar water heating brands, EPC contractors, and installation companies worldwide.
Key Component & Performance
Black Selective Coating
High absorptivity (95%±2%) & low emissivity (8%±2%) for high-efficiency energy capture and low heat loss.

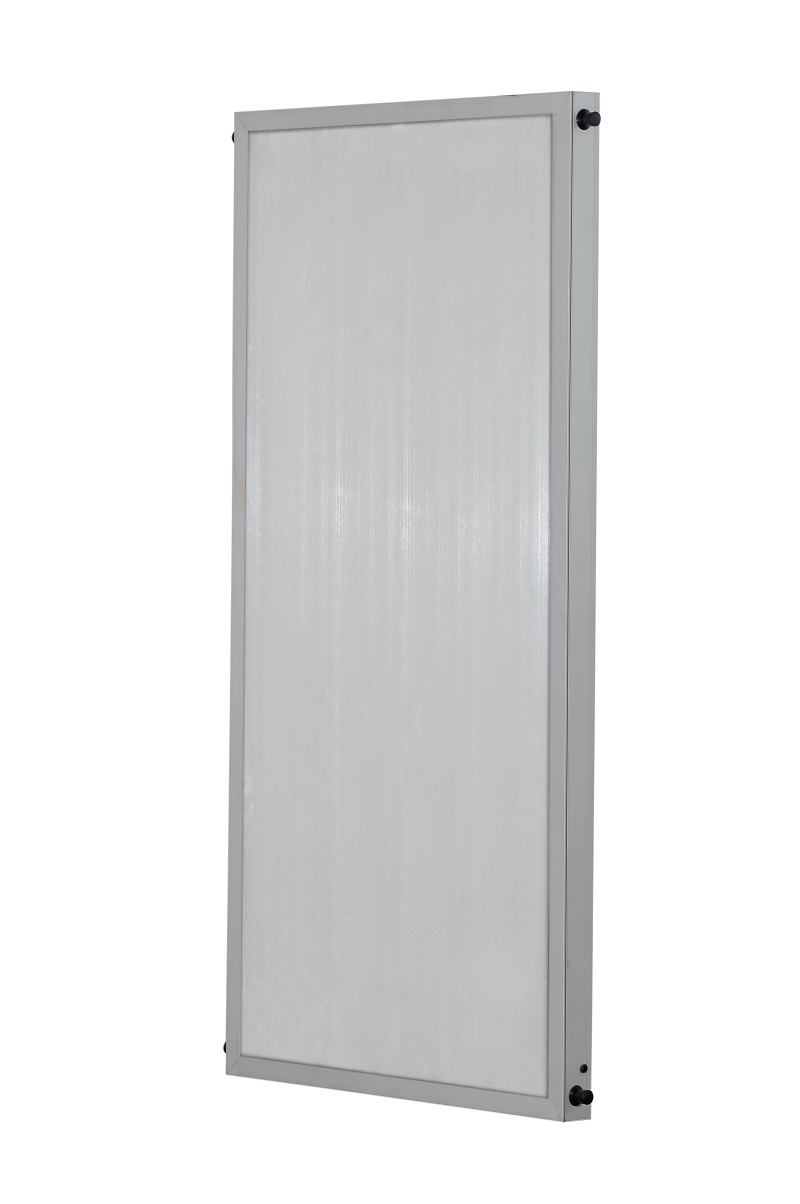

3.2 mm Low-Iron Tempered Glass
≥92% light transmittance, impact-resistant and weather-proof.
Full-Copper Flow Channels
Custom size options, delivering reliable heat transfer and anti-corrosion performance.

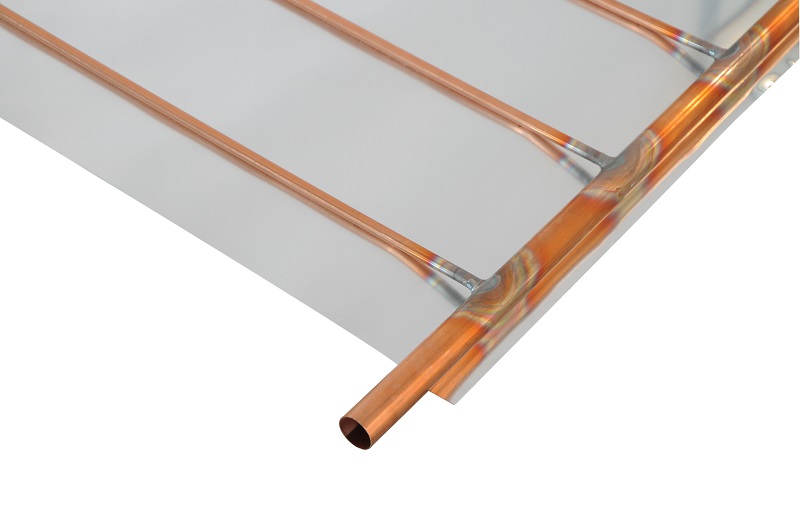

Aluminium / Copper Absorber Optional
Black selective-coated absorbers; ultrasonic or laser welding for superior thermal contact.
6063 Aluminium Alloy Frame
Multiple colour options, anti-corrosion treatment, ideal for building integration.
Glass Wool Insulation
35 kg/m³ density, reduces back and side heat loss effectively.
EPDM / Silicone Sealing
Weather-resistant sealing against moisture and dust ingress.
Black Selective Flat Plate Solar Collector Specification
| Black Selective Flat Plate Solar Collector Specification | |||||
|---|---|---|---|---|---|
| Model No. | M-SBC/1.5-Black | M-SBC/2.0-Black | M-SBC/2.5-Black | M-SBC/3.0-Black | |
| Gross Area | 1.5m² | 2.0m² | 2.5m² | 3.0m² | |
| Dimension (L×W×H) | 1500×1000×80 | 2000×750×80 | 2000×1000×80 | 2000×1250×80 | 2000×1500×80 |
| Aperture Area | 1.35 | 1.35 | 1.84 | 2.32 | 2.80 |
| Absorber Area | 1.31 | 1.31 | 1.76 | 2.22 | 2.73 |
| Total weight of empty collector | 24 | 24 | 29 | 33 | 38 |
| Liquid content | 1.2 | 1.2 | 1.6 | 2.0 | 2.4 |
| Header copper tube | Φ22×1060 | Φ22×810 | Φ22×1060 | Φ22×1310 | Φ22×1560 |
| Riser copper tube | Φ8×1870 | ||||
| Quantity | 7 | 5 | 7 | 9 | 11 |

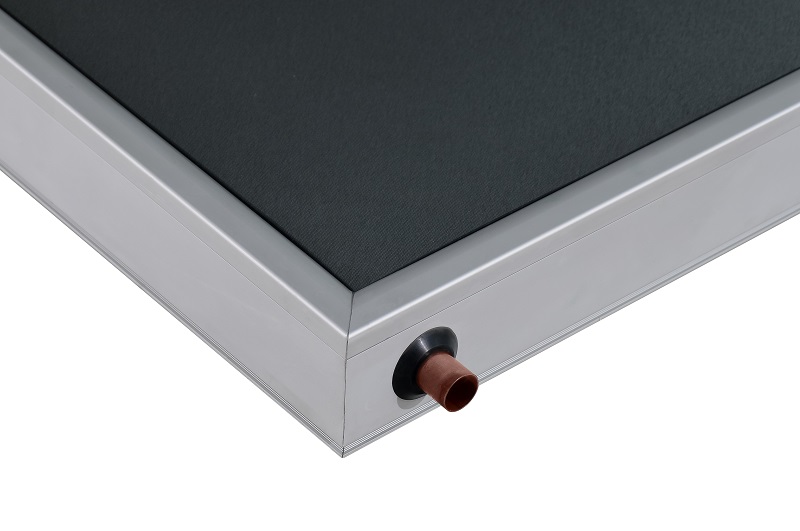

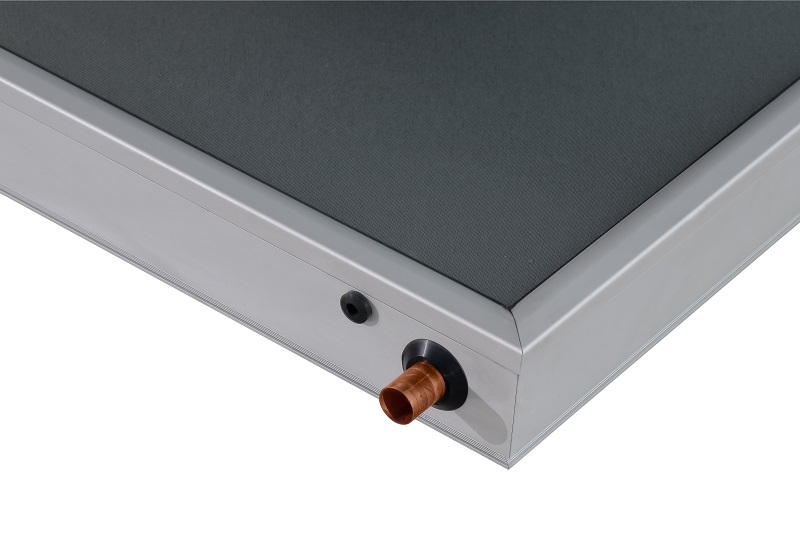

| Collector connection (Inlet / Outlet) | Φ22 mm | ||||
| Max. idle temperature | 152℃ | ||||
| Operating pressure | 12 Bar | ||||
| Test pressure | 20 Bar | ||||
| Nominal volume flow | 50-300 L/Min | ||||
| Main Materials Parameter | |||||
| Cover | Cover material | Low iron patterned tempered glass | |||
| Cover thickness | 3.2 mm | ||||
| Cover transmission | ≥92% | ||||
| Absorber | Material | Full Aluminium sheet | |||
| Surface treatment | Black selective coating | ||||
| Absorptivity | 95%±2% | ||||
| Emissivity | 10%±2% | ||||
| Frame | Material | Aluminium alloy 6063 | |||
| Colour | Silver or Black | ||||
| Insulation | Material | Glass wool (30mm, 35kg/m³) | |||
| Back plate | Material | Aluminium sheet (0.5mm) | |||
| Glass sealing | Material | EPDM & Silicon | |||
What we offer?
OEM & ODM
Manufacturing Support
Private Label
Production
Complete product
supply
CKD/SKD
Supply
12 Bar operating
pressure, 20 Bar test pressure
Technical Documentation & Engineering Support
Custom Solutions
Available sizes from 1.5 m² to 3 m², the collector can be supplied as a complete unit, CKD/SKD package, or customized configuration according to local market requirements.
Customized collector sizes, frame colors, and configuration options are available for OEM customers and commercial projects.
Black Flat Plate Solar Collector Efficiency Curve
Manufacturing & Supply Capabilities

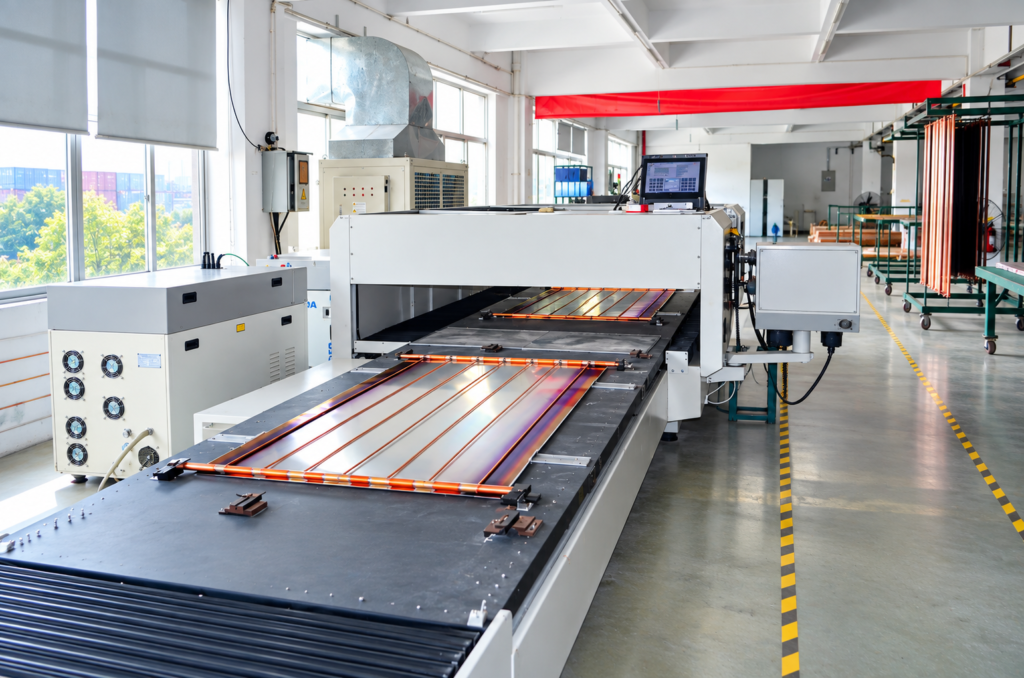

Integrated Manufacturing Resources
- 8,000 m² Production Facility
- 80+ Employees
- 6 Automated Production Lines
- In-House Absorber Coating Line
- Monthly Collector Output: 20,000 sqm
- Annual Capacity: 220,000 sqm
Flexible Supply Options
- Complete collectors
- CKD/SKD supply
- Component supply
- Private label production
- Customized configurations
Technical Resources Center
Frequently Asked Questions
We work systematically to integrate corporate responsibility in our core business and make our expertise available for the benefit of the societies where we operate.
Do you provide OEM and ODM manufacturing services?
Yes. We specialize in OEM, ODM, and private label production for global customers.
What sizes are available?
6 sizes from 1.5 m² to 3.0 m², including three different dimension options for the 1.5 m² model.
What certifications or tests passed do you hold?
Solar Keymark (Europe), SRCC (USA), CSA (Canada), WaterMark (Australia), and TUV (Germany).
Can the collector be customized?
Yes. Frame color, size, packaging, and branding can all be customized.
What is the operating pressure?
12 Bar working pressure, 20 Bar test pressure.
What technical support do you provide?
Product documentation, installation guides, engineering consultation, and project support.
