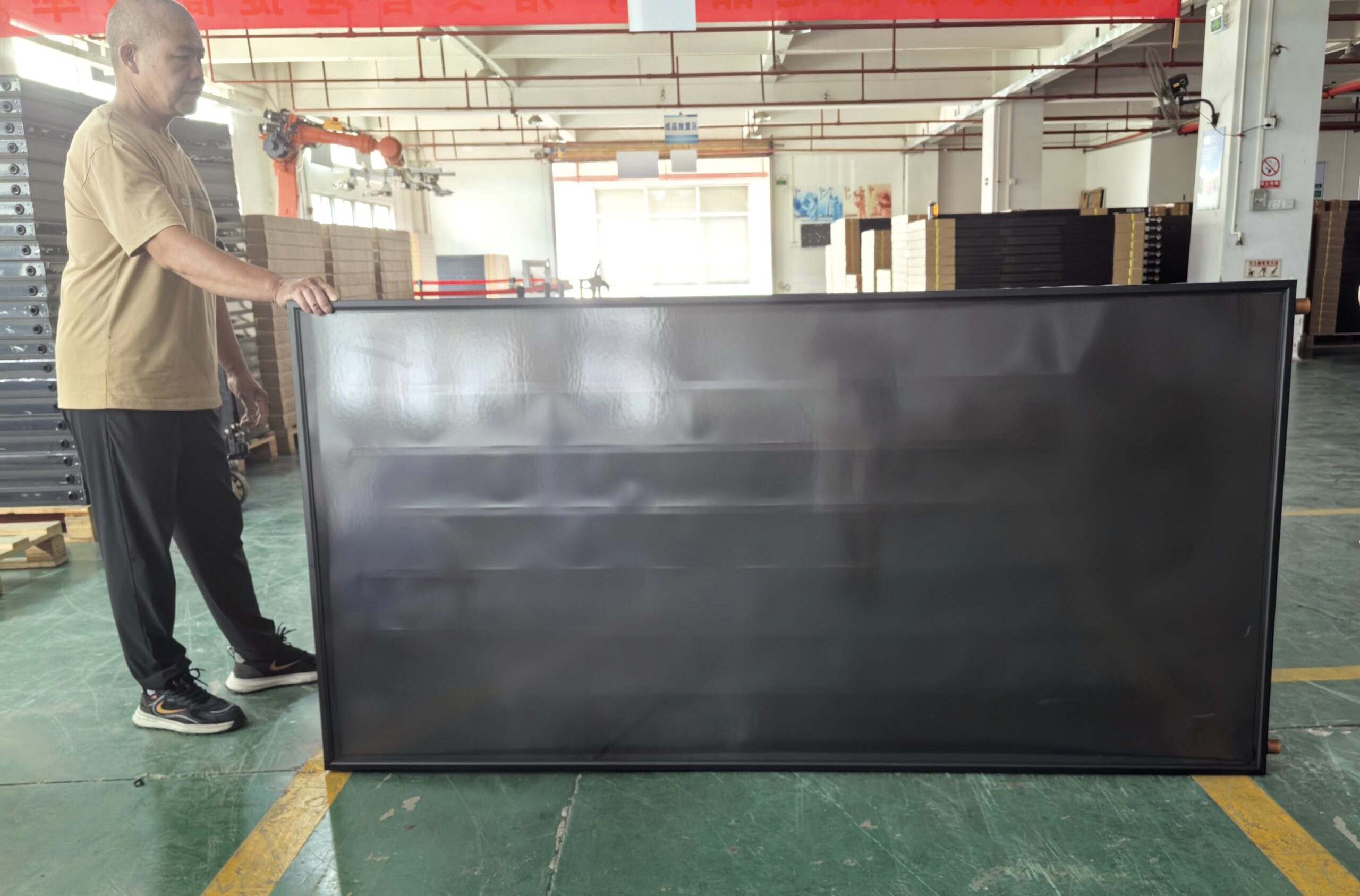

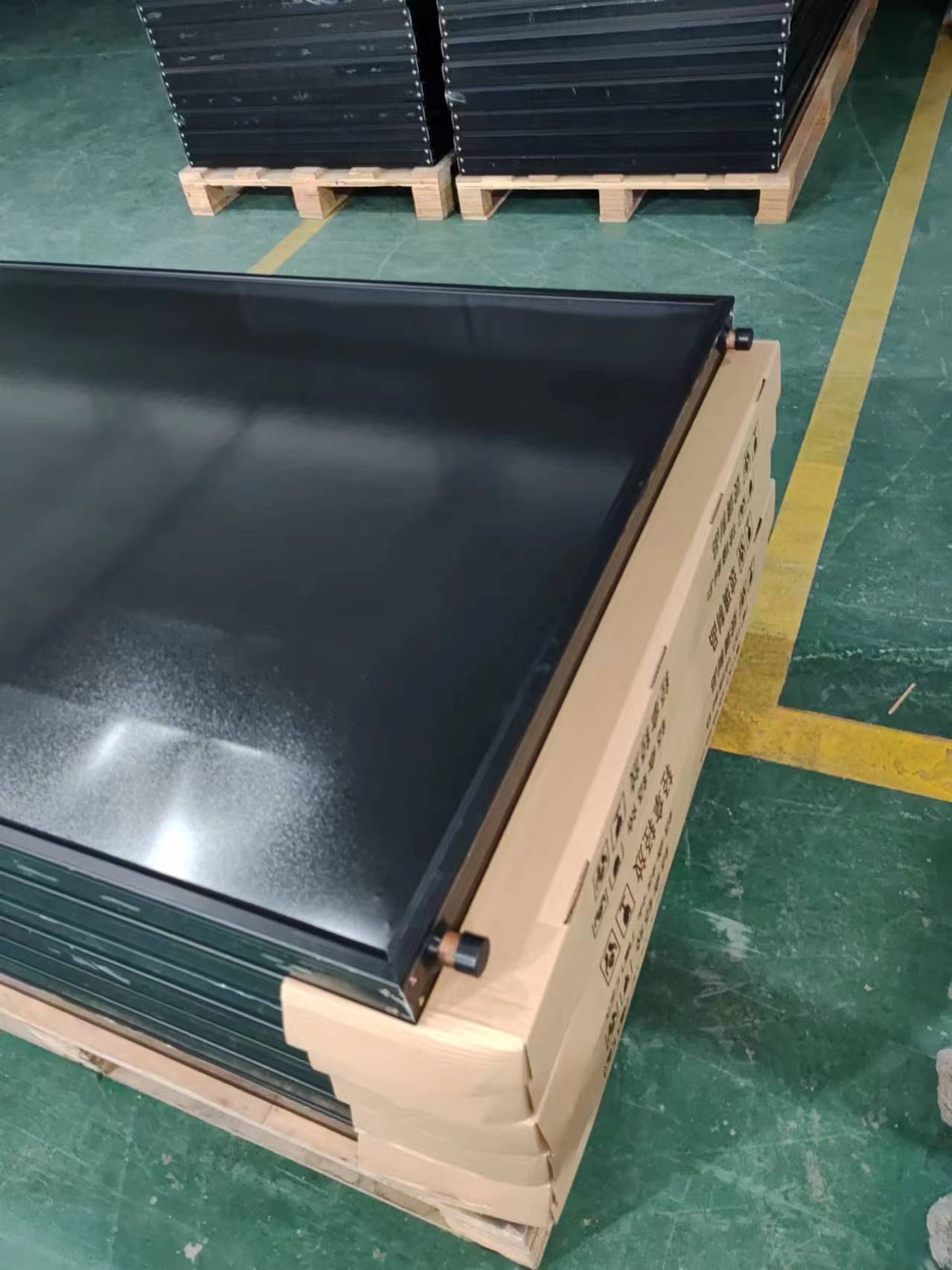

Heat Pipe Flat Plate Solar Collector
Millionsun specializes in OEM and ODM manufacturing of heat pipe flat plate solar collectors for distributors, solar water heating brands, EPC contractors, and installation companies worldwide.
This design offers built-in freeze protection, passive heat transfer, and thermal diode effect (heat flows one way only — no reverse circulation at night). Ideal for cold climates, remote installations, and projects where freeze protection is critical.
Key Features & Performance
Cover Glass
3.2mm low-iron tempered glass with high transmittance (≥92%) and hail resistance
Absorber Plate

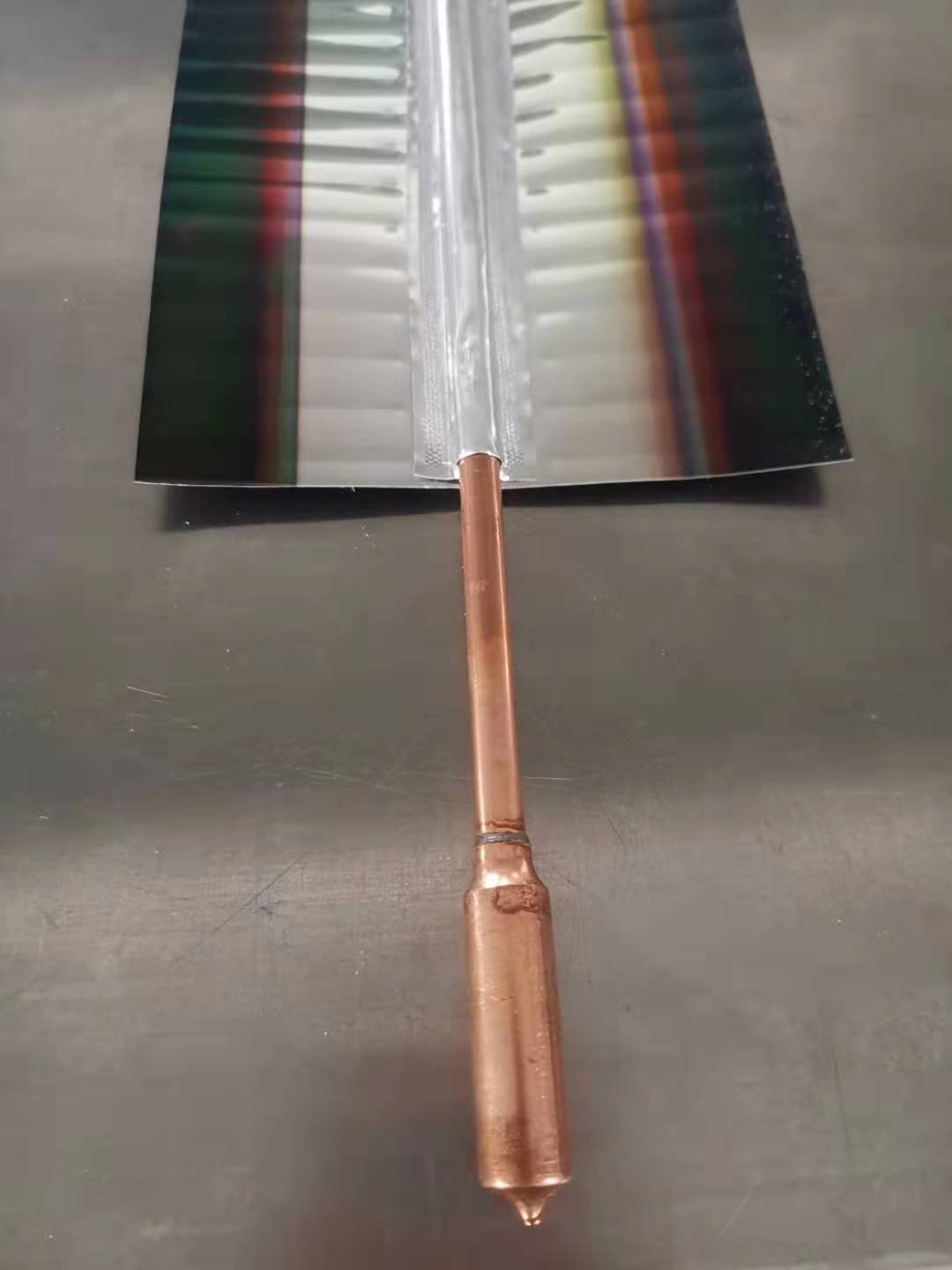

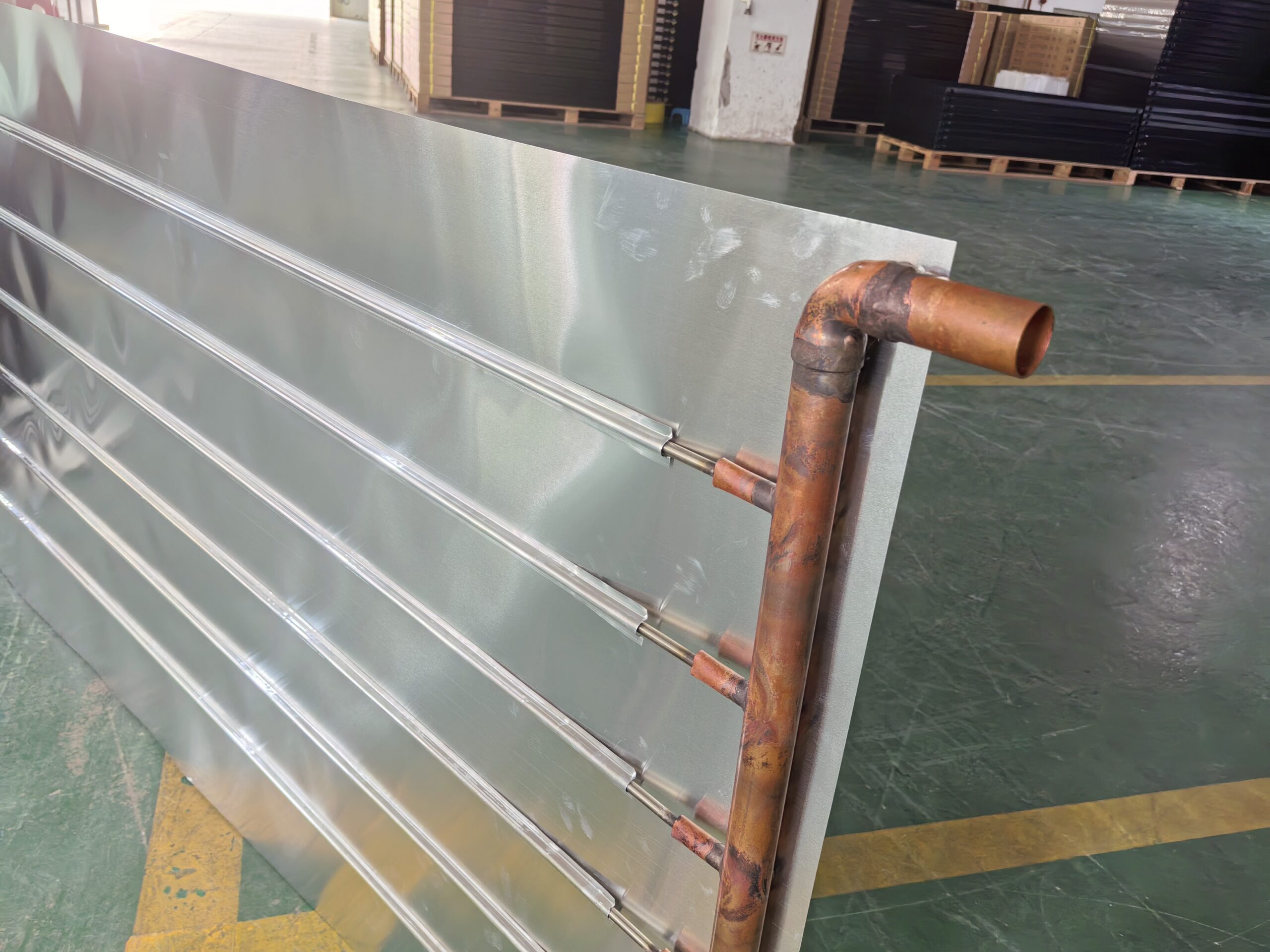

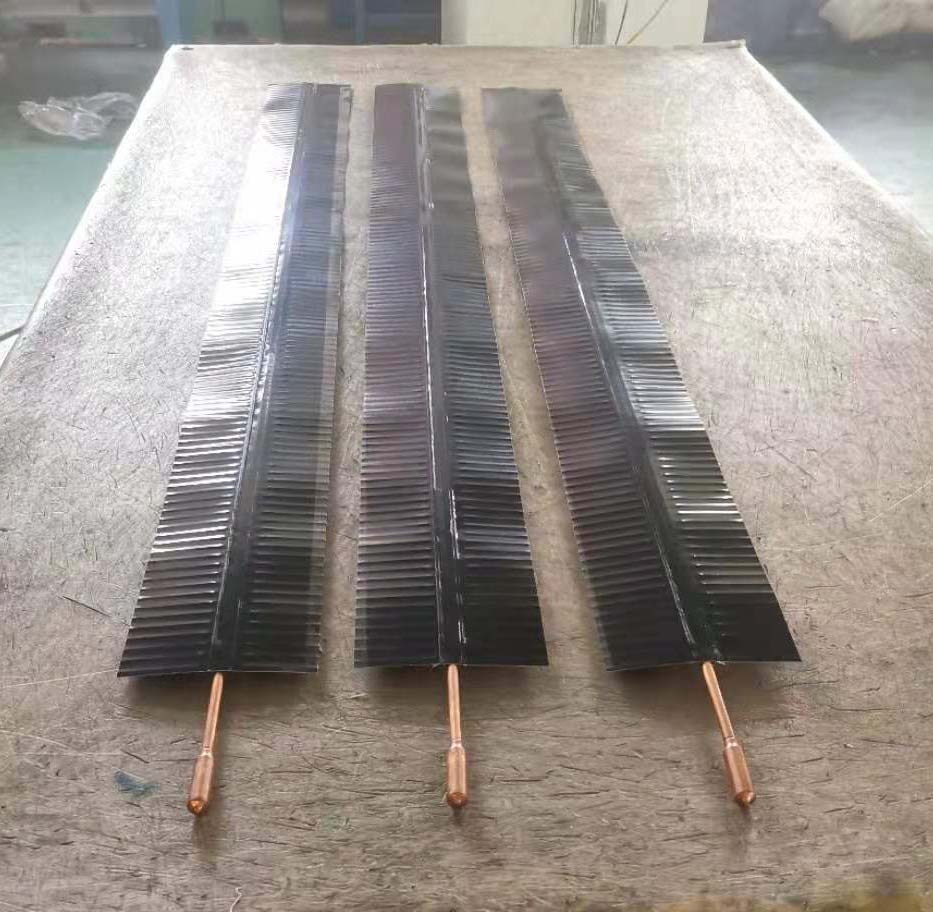

Aluminum substrate with black selective coating, embedded with copper heat pipes
Heat Pipes

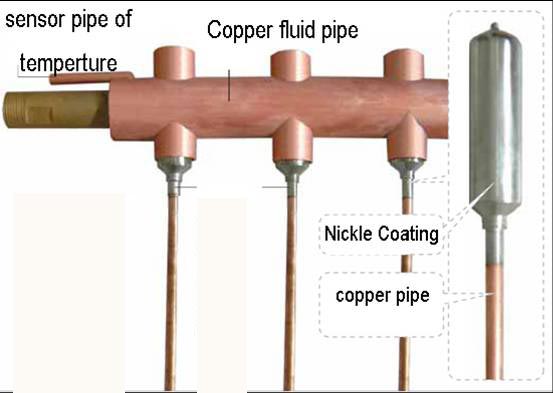

TU1 oxygen-free copper heat pipes (Ø8×0.6mm) with nickel-plated condenser tips
Header Manifold
Red copper manifold (Ø22×0.6mm)
Insulation
25mm mineral wool (bottom) + sealed side insulation, temperature resistant ≥250°C
Back Sheet
0.5mm galvanized steel sheet for corrosion protection
Frame
6063-T5 anodized aluminum alloy frame (1.0~1.2mm thickness)
Product Specifications
| Parameter | Standard Value | Remark |
|---|---|---|
| Model | M-SHPF/2.0 | Customizable |
| Outer Dimension | 2000 × 1000 × 80 mm | L×W×T; 1800/2200mm length optional |
| Aperture Area | 1.89 m² | — |
| Gross Area | 2.00 m² | — |
| Frame Material | 6063-T5 Anodized Aluminum Alloy | Thickness 1.0~1.2mm |
| Cover Glass | 3.2mm Low-Iron Tempered Glass | Transmittance ≥92%; Hail resistance Ø25mm |
| Absorber Structure | Aluminum Sheet + Embedded Copper Heat Pipes | Substrate thickness 0.3mm |
| Selective Coating | Black Selective Coating | α ≥ 0.93; ε ≤ 0.08 |
| Heat Pipe Material | TU1 Oxygen-Free Copper | Ø8 × 0.6mm |
| Insulation | 25mm Mineral Wool (bottom) + Sealed Side Insulation | Temperature resistance ≥250°C |
| Back Sheet | 0.5mm Galvanized Steel Sheet | Anti-corrosion |
| Header Manifold | Red Copper Φ22 × 0.6mm | SUS304 2B outer shell |
| Nominal Working Pressure | 0.6 MPa (6 bar) | Closed pressurized system |
| Test Pressure | 1.5 MPa (15 bar) | Factory pressure test |
| Maximum Stagnation Temperature | 235°C | No-load condition |
| Heat Loss Coefficients |
a₁ ≤ 3.8 W/(m²·K); a₂ ≤ 0.015 W/(m²·K²) |
— |
| Recommended Installation Angle | 20° ~ 75° | Minimum ≥15° for heat pipe reflux |
| Net Weight | 28 ~ 32 kg per collector | — |
| Working Fluid | Water / Ethylene Glycol Antifreeze Solution | No fluid inside heat pipes |
| Warranty | 5 Years | Collector body |
What we offer?
OEM & ODM Manufacturing Support
CKD & SKD Supply
Private Label Production
Passive Heat Transfer — No Pump Required
Built-In Freeze Protection
Thermal Diode Effect — No Night Heat Loss
Suitable for Residential, Commercial & Project Applications
Technical Documentation & Engineering Support
Custom Project Solutions
Custom collector sizes, configurations, and integration with existing drying or heating systems are available for OEM customers and commercial projects.
Recommended Applications:
Single-family homes
Villas
Off-grid cabins
Remote residential installations
Hotels in cold climate regions
Apartment buildings
Schools and dormitories
Commercial projects requiring freeze protection
Business Value
Why Heat Pipe Collectors Create Commercial Value
No Freeze Risk Sealed pipe contains no water.
Nothing to freeze.
No Circulation Pump Passive operation.
No pump, no controller, no electricity.
No Night Heat Loss Thermal diode blocks reverse flow.
Reduced Maintenance
No moving parts.
No pump to replace.
No antifreeze to check.
Cold Climate Solution Works where standard collectors require expensive freeze protection systems.
Product Comparison & Solution Advantages
Compare With Evacuated Tube Solar Collectors
How the System Works
- Heat pipe flat plate collector
- Storage tank with heat exchanger
- Mounting frame · Connecting pipework
- Expansion vessel and safety valves
1
2

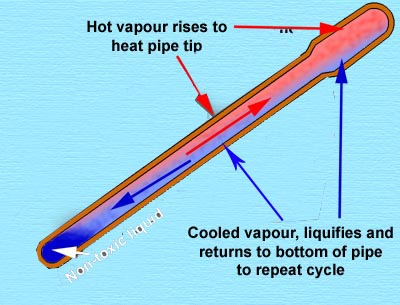

The heat pipe receives heat at its evaporator end. The working fluid inside vaporizes.
3
4
5

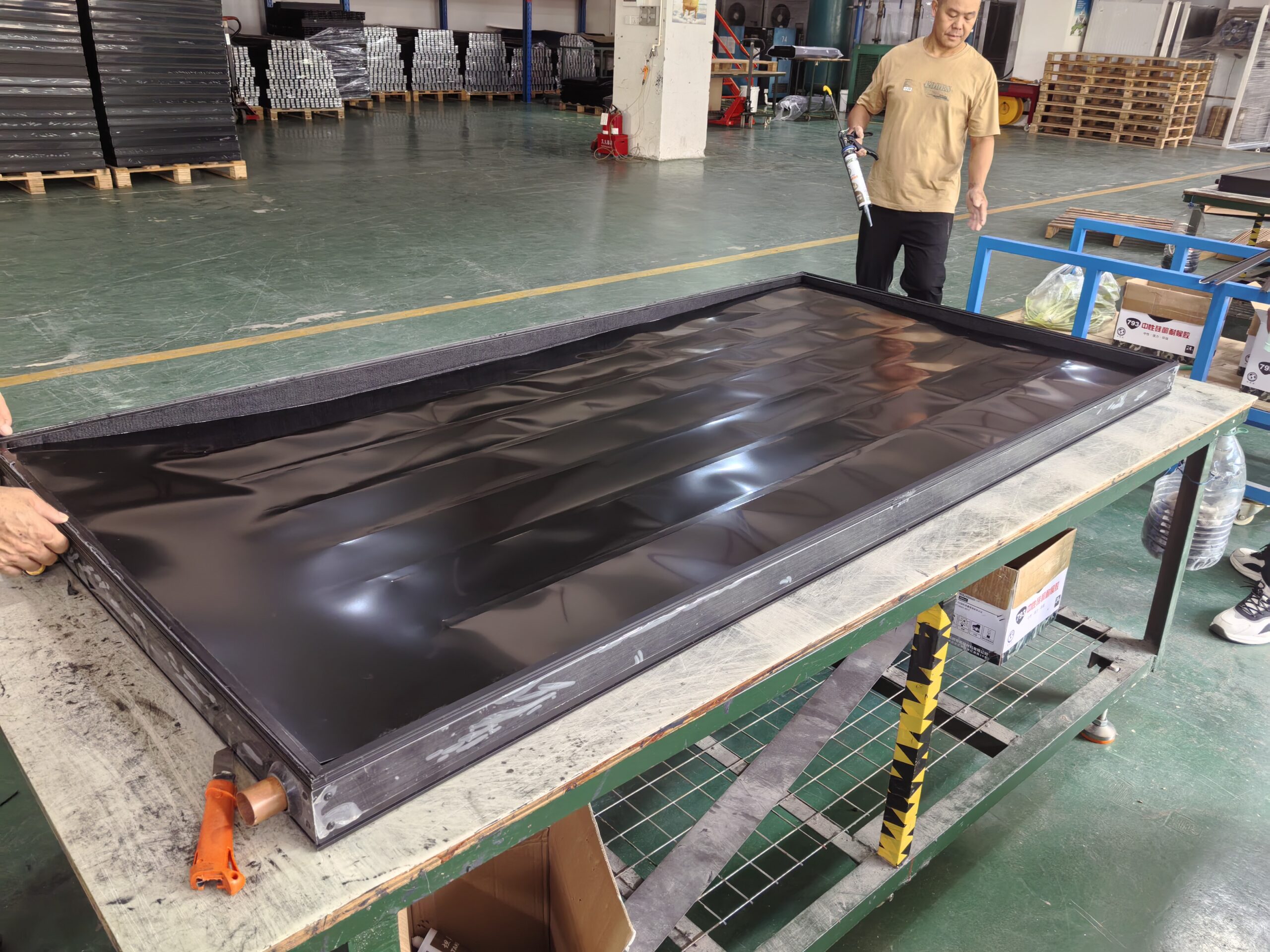

Manufacturing & Supply Capabilities
Integrated Manufacturing Resources
- 8,000 m² Production Facility
- 80+ Employees
- 6 Automated Production Lines
- In-House Absorber Coating Line
- Monthly Collector Output: 20,000 sqm
- Annual Capacity: 220,000 sqm
Supply Options
- Complete collectors
- Private label
- Custom configurations
- CKD/SKD
Technical Resources Center
Frequently Asked Questions
We work systematically to integrate corporate responsibility in our core business and make our expertise available for the benefit of the societies where we operate.
Do you provide OEM manufacturing services?
How does a heat pipe collector differ from a standard collector?
Does it work in cold climates?
Can it be used with existing solar thermal systems?
What sizes are available?
What technical support do you provide?
Product documentation, installation guides, engineering consultation, and project support.
