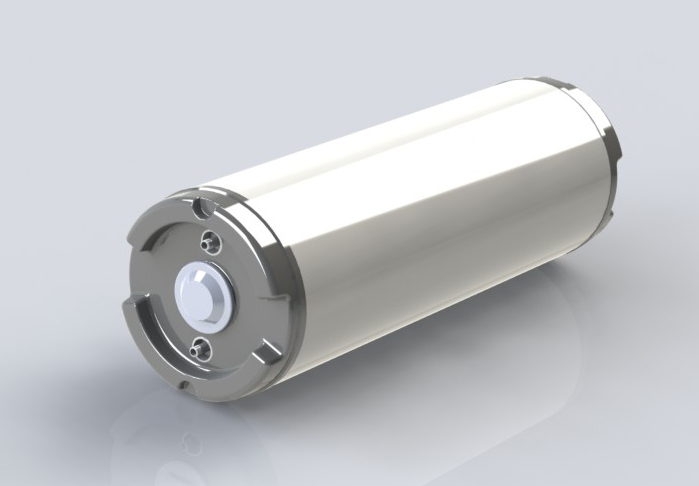

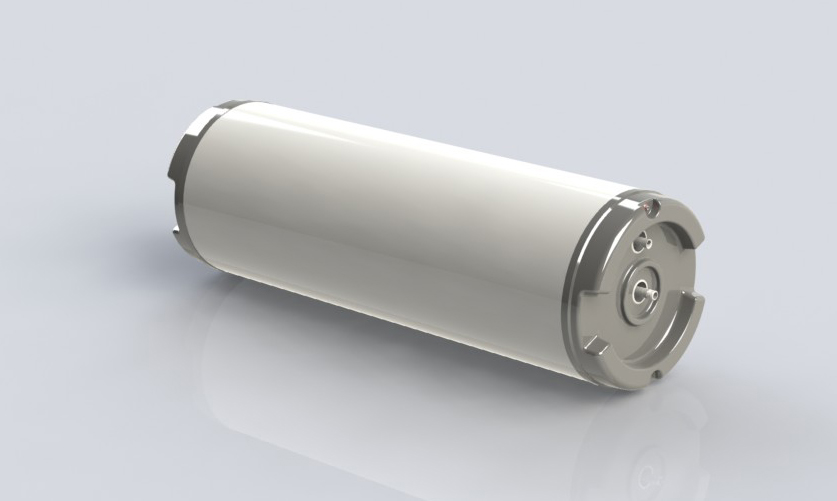

Horizontal Solar Water Tank
Millionsun specializes in OEM and ODM manufacturing of horizontal Solar Water Tanks for distributors, solar brands, system integrators, and installers worldwide.
Horizontal water tanks can only be installed horizontally. Millionsun horizontal water tank capacities range from 100L to 500L, with electric heating element options from 1.5KW to 3KW. The tank can be supplied as a standalone unit or as part of a complete system package.
Key Features & Performance

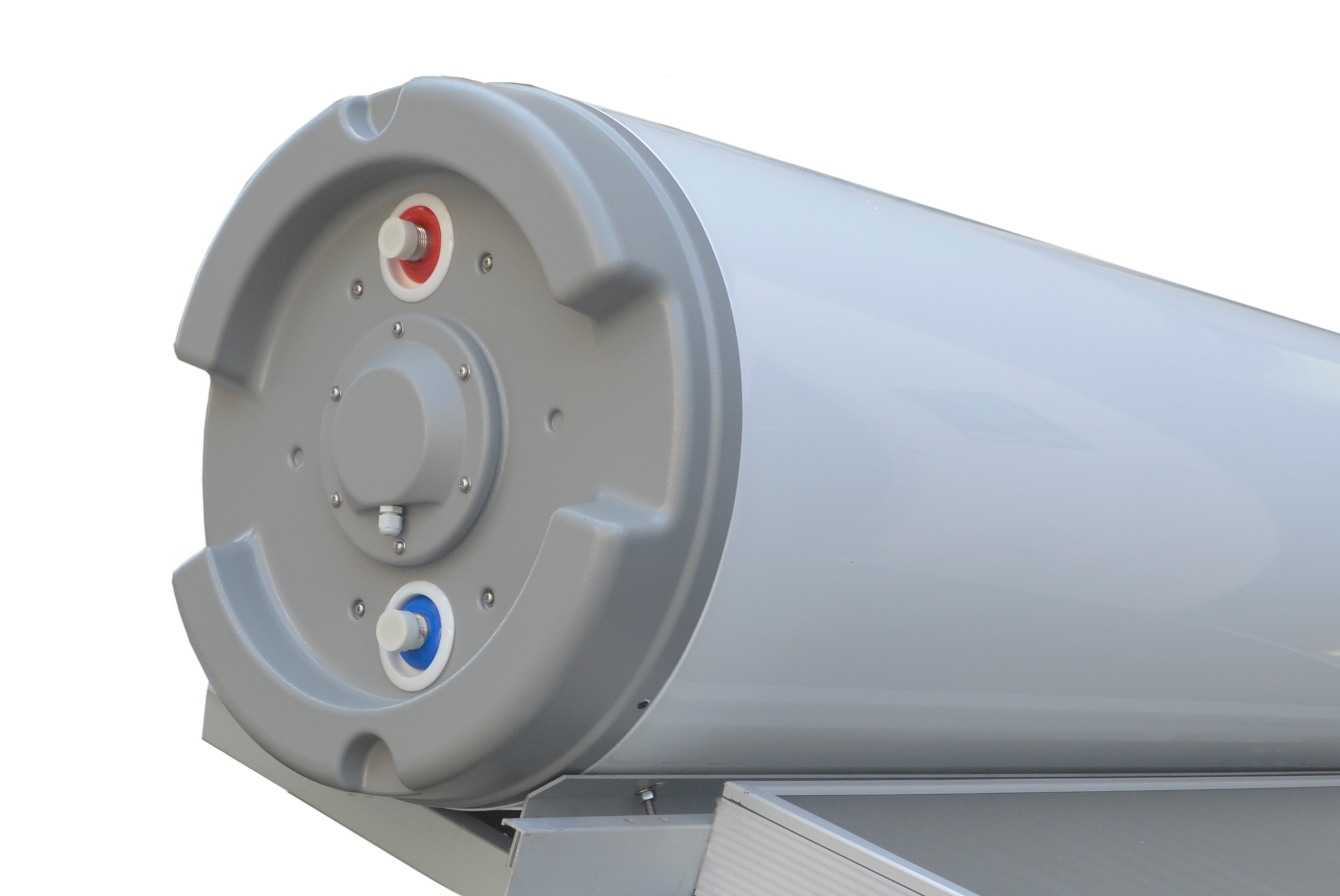

Premium Exterior Finish
Attractive coated outer shell; high-quality colour steel casing, elegant, waterproof & corrosion-resistant, suitable for indoor and outdoor installation.
Corrosion-Resistant Stainless Steel Inner Tank
Inner tank available in SUS304 / SUS316L stainless steel for outstanding anti-corrosion performance. Precise welding guarantees reliable pressure resistance.
Efficient Polyurethane Insulation
Directly foamed polyurethane layer for excellent heat retention. Heat loss below 3°C per day, top-tier insulation performance.
Multiple Safety Protections
Fitted with temperature & pressure relief valve, leakage current protection and backup heater thermostat protection for safe operation.
Backup Electric Heating
Built-in electric booster serves as alternative heating source when solar energy is insufficient.
Wide Compatibility
Easy to match with residential solar systems.

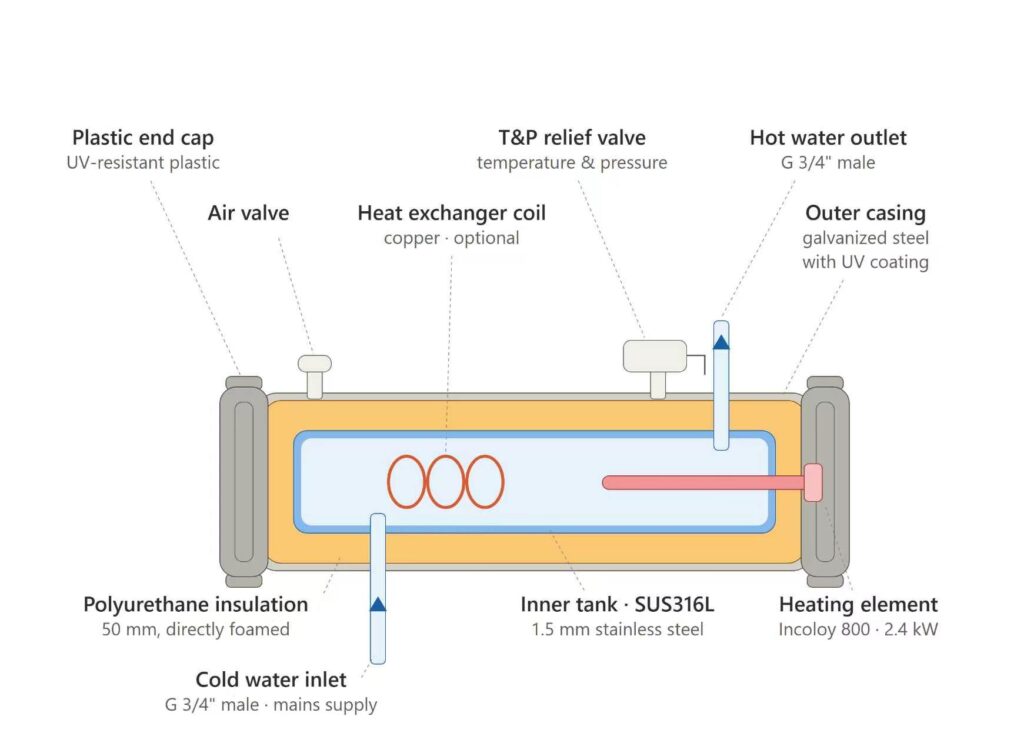

Horizontal Water Tank Specifications
| Tank Type | TS/100L | TS/150L | TS/200L | TS/300L | TS/400L |
|---|---|---|---|---|---|
| Dimension | Φ520×975 | Φ520×1312 | Φ520×1590 | Φ520×2270 | Φ570×2300 |
| Tank capacity | 105L | 155L | 210L | 315L | 415L |
| Tank inside | Material: SUS 304 or SUS 316L / Thickness: 1.5mm | ||||
| Tank outside | Material: galvanized steel sheet and UV coating / Thickness: 0.5mm | ||||
| Insulation | Material: Polyurethane / Thickness: 50mm | ||||
| Tank cap | Material: Plastics | ||||
| Connector | G 3/4" Male | ||||
| Work pressure | 0.7MPa | Testing pressure | 1.2MPa | ||
| Electrical support | 1.5 KW or 2.4 KW | Protect | TP valve, Air valve | ||
| Tank inside install copper heat exchanger |
Yes or no (According to the requirements of customers) |
||||
What we offer?
OEM & ODM Manufacturing Support
Private Label Production
Complete product supply
CKD/SKD Supply
Steel outer shell with UV coating
Copper heat exchanger (optional)
Anode rod (optional)
Custom Solutions:
Custom tank capacities, dimensions, heat exchanger configurations, and electrical specifications available for OEM customers and commercial projects.
Business Value
How the System Works?
In a Thermosyphon System
The tank mounts above the solar collector on the roof. As the collector heats water, the hot water naturally rises into the tank. Cooler water from the tank bottom flows back to the collector. This natural circulation continues as long as the sun shines. The electric element provides backup heating when needed.
In a Forced Circulation (Split) System
The tank mounts inside the building at ground level. A pump circulates antifreeze fluid through the collectors and a heat exchanger inside the tank transfers the heat to the stored water. The controller manages pump operation and backup heating automatically.
As an Electric Backup Tank Only
The tank works as a standard electric water heater, with the heating element controlled by a thermostat. It can be added to an existing solar system or used as a standalone electric storage tank.

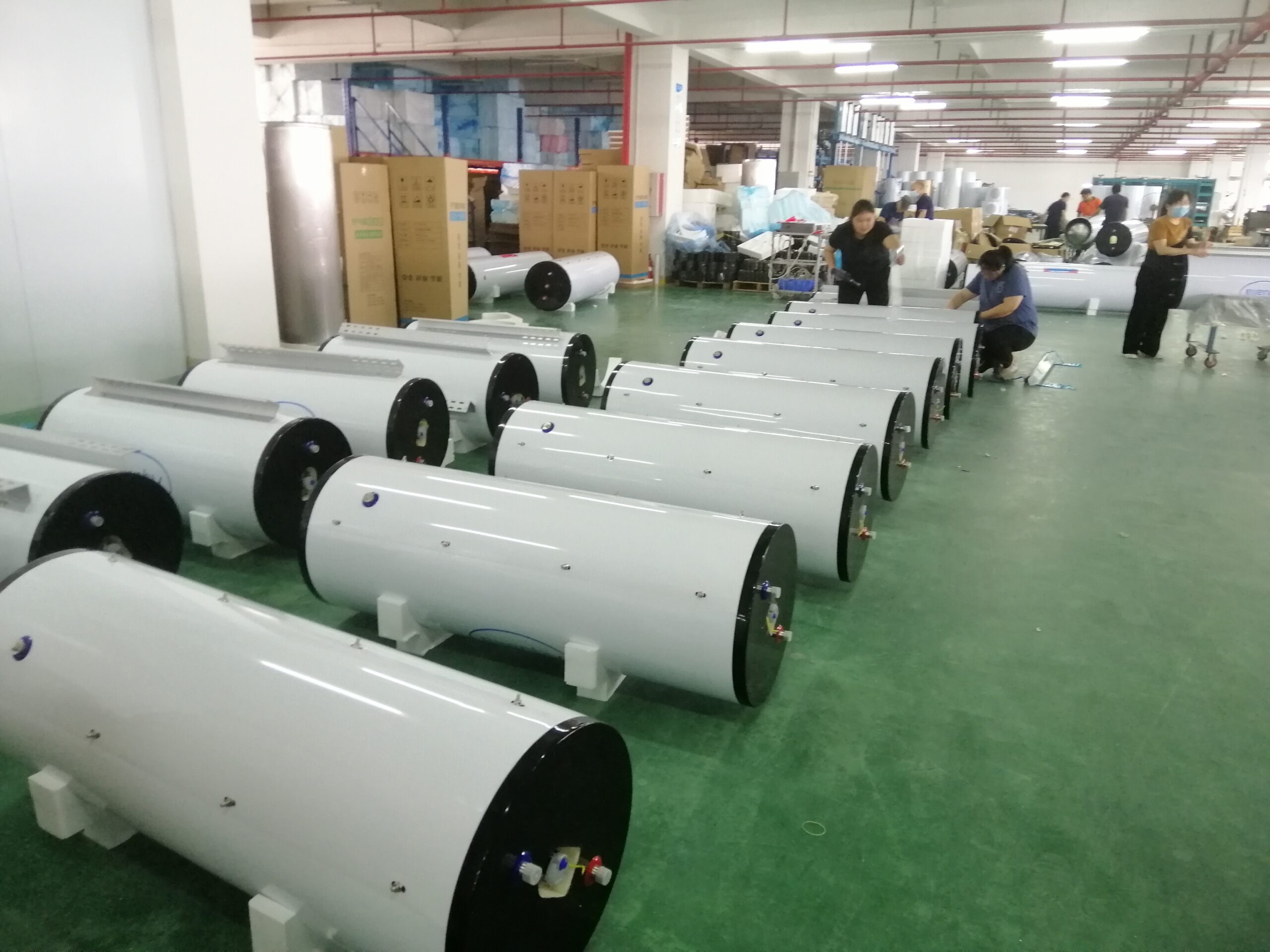

Manufacturing & Supply Capabilities
Integrated Manufacturing Resources
- 8,000 m² Production Facility
- 80+ Employees
- 6 Automated Production Lines
- Dedicated tank production workshop
- Tank production since 2010
- Tank output: 4,000 units per month
Flexible Supply Options
- Standalone tanks
- Tanks with electric heating element installed
- Tanks with copper heat exchanger
- Complete system packages
- Private label / custom branding
- CKD / SKD supply
Technical Resources Center
Frequently Asked Questions
We work systematically to integrate corporate responsibility in our core business and make our expertise available for the benefit of the societies where we operate.
Do you offer OEM service?
What sizes are available?
Is the tank pressurized?
Can the tank work with antifreeze systems?
What heating element options are available?
What support do you provide?
