PVT Flat Plate Solar Collector
OEM PVT Solar Collector — Manufacturing & Supply
Millionsun manufactures PVT (photovoltaic-thermal) solar collectors for distributors, solar brands, EPC contractors, and project developers worldwide.
A PVT collector combines photovoltaic cells and a thermal absorber in a single panel. The PV layer generates electricity while the thermal absorber extracts heat from the back of the panel — cooling the PV cells (improving electrical efficiency) and capturing useful heat for water heating or other applications.
Available for OEM orders. Custom configurations available for project-specific requirements.
Key Highlights
- OEM Manufacturing Support
- Private Label Production
- Combined PV + Thermal in One Panel
- Simultaneous Electricity and Heat Generation
- PV Cell Cooling Improves Electrical Output
- Suitable for Residential & Commercial Projects
- Compatible with Existing Solar Thermal Systems
Key Features & Performance
Dual Energy Generation
One panel generates electricity and heat simultaneously. PV cells produce DC electricity. The thermal absorber collects heat from the rear of the panel.
Improved PV Efficiency
Heat extraction from the back of the panel cools the PV cells. Lower cell temperature means higher electrical efficiency compared to standalone PV panels.
Space Efficient
One panel does the work of two.
Standard Flat Plate
Design Fits standard flat plate collector frames.
Aluminium Absorber Construction
Full aluminium sheet with copper tubes.
Low-Iron Tempered Glass Cover
3.2mm. Transmission ≥92%.
Aluminium Alloy Frame
Alloy 6063. Silver or black.
Product Collection
Residential PVT Collector
For single-family homes, villas, and small residential projects. Generates electricity for household use and heat for domestic hot water.
Key Features:
- Compact size suitable for residential rooftops
- Dual output: electricity + hot water
- Compatible with standard inverter systems
- Easy integration with existing heat pump or solar thermal systems
- Larger panel configurations available
- Higher electrical and thermal output
- Suitable for multi-panel arrays
- Compatible with commercial inverter and thermal storage systems
Recommended Applications:
Single-family homes
Villas
Off-grid residential systems
Hotels and guesthouses
Apartment buildings
Schools and dormitories

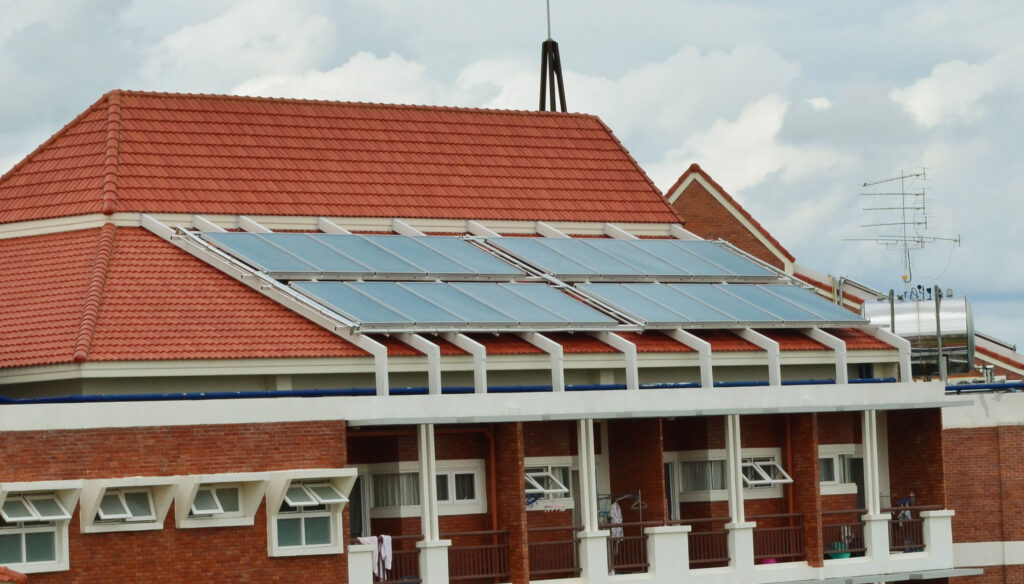

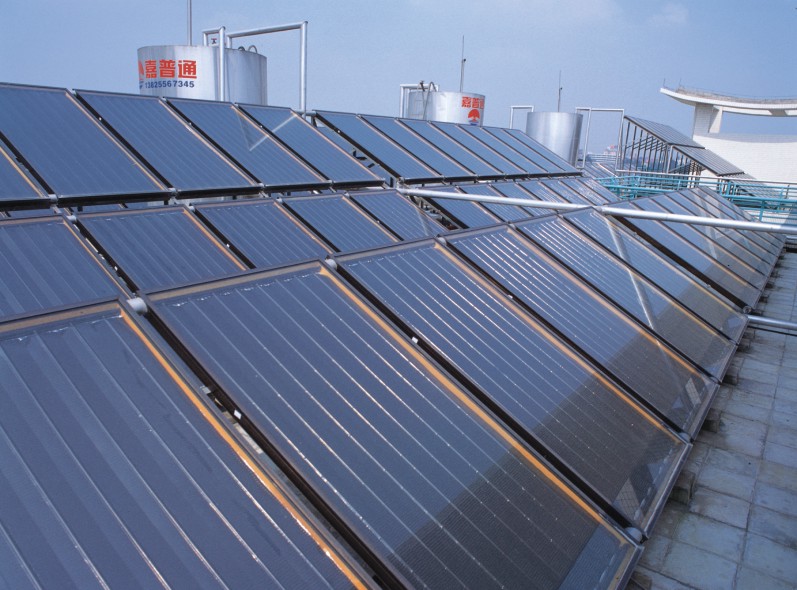

Commercial PVT Collector
For hotels, apartment buildings, schools, and commercial projects. Provides both electrical power and thermal energy from the same roof area.
Key Features:
- Larger panel configurations available
- Higher electrical and thermal output
- Suitable for multi-panel arrays
- Compatible with commercial inverter and thermal storage systems
Recommended Applications:
Hotels and guesthouses
Apartment buildings
Schools and dormitories
Commercial projects requiring freeze protection
Custom Project Solutions
Custom panel sizes, electrical configurations, and thermal output specifications available for OEM customers and commercial projects.
| Blue Selective Flat Plate Solar Collector Specification | ||||||
|---|---|---|---|---|---|---|
| Model No. | M-SBU/1.5-Blue | M-SBU/2.0-Blue | M-SBU/2.5-Blue | M-SBU/3.0-Blue | ||
| Gross Area | 1.5m² | 2.0m² | 2.5m² | 3.0m² | ||
| Dimension (L×W×H) | 1500×1000×80 | 2000×750×80 | 2000×1000×80 | 2000×1250×80 | 2000×1500×80 | |
| Aperture Area | 1.35 | 1.35 | 1.84 | 2.32 | 2.80 | |
| Absorber Area | 1.31 | 1.31 | 1.76 | 2.22 | 2.73 | |
| Total weight of empty collector | 24 | 24 | 29 | 33 | 38 | |
| Liquid content | 1.2 | 1.2 | 1.6 | 2.0 | 2.4 | |
| Header copper tube | Φ22×1060 | Φ22×810 | Φ22×1060 | Φ22×1310 | Φ22×1560 | |
| Riser copper tube | Φ8×1870 | |||||
| Quantity | 7 | 5 | 7 | 9 | 11 | |
| Collector connection (Inlet / Outlet) | Φ22 mm | |||||
| Max. idle temperature | 152℃ | |||||
| Operating pressure | 12 Bar | |||||
| Test pressure | 20 Bar | |||||
| Nominal volume flow | 50-300 L/Min | |||||
| Main Materials Parameter | ||||||
| Cover | Cover material | Low iron patterned tempered glass | ||||
| Cover thickness | 3.2 mm | |||||
| Cover transmission | ≥92% | |||||
| Absorber | Material | Full Aluminium sheet | ||||
| Surface treatment | Blue selective coating | |||||
| Absorptivity | 95%±2% | |||||
| Emissivity | 10%±2% | |||||
| Frame | Material | Aluminium alloy 6063 | ||||
| Colour | Silver or Black | |||||
| Insulation | Material | Glass wool (30mm, 35kg/m³) | ||||
| Back plate | Material | Aluminium sheet (0.5mm) | ||||
| Glass sealing | Material | EPDM & Silicon | ||||
Business Value
Designed for Different Business Models
Your Business
How This Product Fits
Distributor
Designed for Different Business Models
Solar Brand
Private label PVT collectors.
EPC Contractor
Single installation, dual output.
Project Developer
Reduce roof space with combined PV and thermal.
Why PVT Collectors Create Commercial Value
Dual Revenue Stream
Electricity generation plus heat production.
Space Savings
One panel replaces two.
Improved PV Performance
Thermal extraction cools the PV cells.
Simplified Installation
Single mounting system. Single roof penetration.
Future-Ready Technology
Growing market interest in hybrid solar solutions.
Product Comparison & Solution Advantages
Conventional Solar Thermal System
PVT Collector
Only produces thermal energy (hot water)
Produces both electricity + heat simultaneously
Limited energy utilization efficiency
Higher total energy output per square meter
Requires separate solar PV system for electricity
Integrated PV + thermal solution in one system
Heat output affected by high panel temperature
Enhanced efficiency through heat recovery
Separate system installation and space required
Space-saving integrated design
Standard PV System
PVT Collector
Converts only solar energy into electricity
Generates electricity + usable thermal energy
Panel temperature reduces efficiency
Heat extraction improves electrical efficiency
No thermal energy utilization
Waste heat recovered for hot water or heating
Requires additional heating system
One system covers both power and heat needs
Lower overall energy utilization rate
Higher total solar energy utilization
Electric / Boiler System
PVT Collector
High electricity or fuel consumption
Uses renewable solar energy
Continuous operating cost
Significantly reduces long-term energy cost
Carbon emissions during operation
Clean energy solution
Dependent on grid or fuel supply
Energy independent system
High energy price sensitivity
Stable long-term energy output
How the System Works
System Components:
- PVT collector
- PV inverter
- Storage tank with heat exchanger
- Circulation pump and controller
- Mounting frame
- Pipework and insulation
1
Step01:
Sunlight strikes the PVT collector. PV cells convert light into DC electricity.
Sunlight strikes the PVT collector. PV cells convert light into DC electricity.
2
Step 2:
Remaining solar energy passes through as heat. The thermal absorber collects it from the rear.
3
Step 3:
Electricity goes to an inverter. Heat transfers to fluid in the copper tubes.
Electricity goes to an inverter. Heat transfers to fluid in the copper tubes.
4
Step 4:
Heated fluid flows to a storage tank or heat exchanger.
Heated fluid flows to a storage tank or heat exchanger.
5
Step 5:
Heat extraction cools the PV cells, maintaining higher electrical efficiency.
Heat extraction cools the PV cells, maintaining higher electrical efficiency.
Manufacturing & Supply Capabilities
OEM Manufacturing
Millionsun manufactures solar thermal collectors with PV integration expertise.

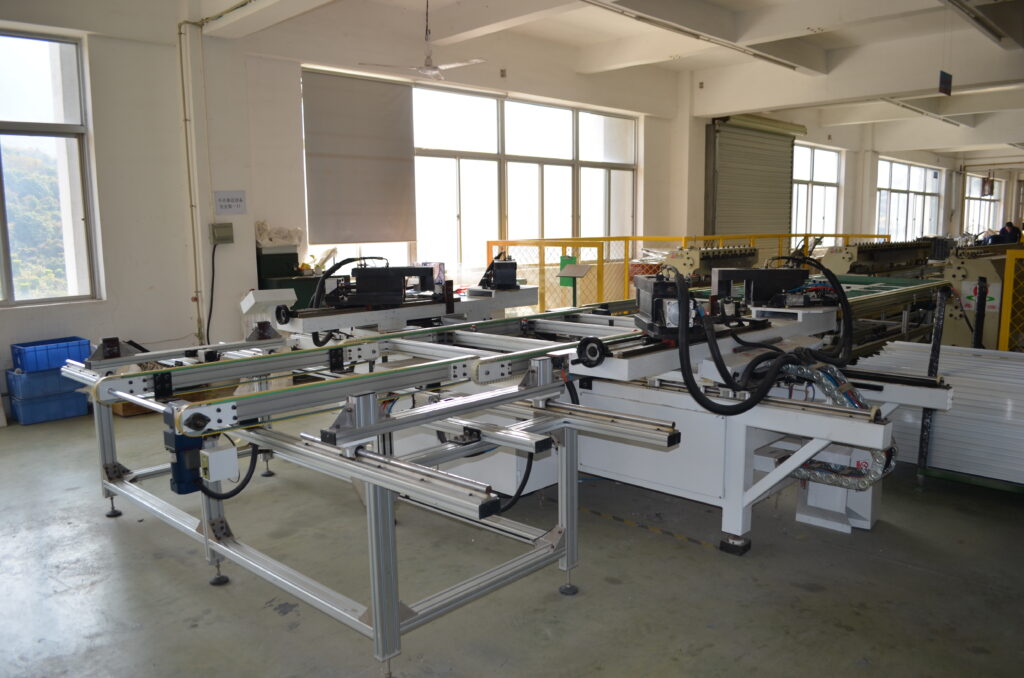

Our Factory
- 8,000 m² Production Facility
- 80+ Employees
- 6 Automated Production Lines
- In-House Absorber Coating Line
- Monthly Collector Output: 20,000 sqm
- Annual Capacity: 200,000 sqm
Supply Options
- Complete PVT collectors
- Private label production
- Custom configurations
- Technical documentation and support
Quality Management
Stage
Materials
Production
Testing
Final inspection
Check
PV cell quality, coating, copper tube, glass
Cell layup, thermal bond, frame assembly, sealing
Electrical output test, thermal performance test
Dimensions, appearance, packaging
Technical Resources Center
Frequently Asked Questions
Do you provide OEM manufacturing services?
Yes. Custom configurations, branding, and packaging available.
What is a PVT collector?
Combines PV cells and a thermal absorber in one panel. Generates electricity and heat simultaneously.
How does PVT improve PV efficiency?
Heat extraction from the rear cools the cells. Cooler cells operate at higher efficiency.
What are the typical applications?
Residential homes, commercial buildings, hotels, schools.
Can PVT be integrated with existing systems?
Yes. Thermal side connects to standard solar thermal storage. Electrical side connects to standard PV inverters.
What sizes are available?
Contact our team for current specifications.
What technical support do you provide?
Product documentation, system design guidance, and engineering support.
